VOSS - Integrated Vehicle Pressure Sensors for Air Systems
VOSS has developed a system combining connectors with pressure sensors to enhance the efficiency of pneumatic systems in commercial vehicles. This innovation simplifies the integration of sensors into air systems, particularly in the braking, air suspension, and auxiliary circuits of trucks and buses. The sensors come pre-mounted on connectors, allowing for 360-degree rotation to simplify installation. This design eliminates the need for complex setups involving separate branches, adapters, and mounts. These pressure sensors offer a single connection point for both pneumatic and sensor connections, minimizing space requirements, reducing weight, and improving handling efficiency compared to traditional systems. Technical specifications include a pressure range from 0.85 to 16.85 bar, a supply voltage of 8V to 32V, an output signal of 0.5V to 4.5V, and functionality between -40°C to +100°C. The sensors are validated according to ISO 16750 standards.
Intelligent vehicle systems rely on sensors. In the future, this will be even more so than today. VOSS is making a significant contribution through coherent system integration of sensors. The sensor function expands the functional scope of VOSS modules in the compressed air system of commercial vehicles, and system behavior is optimized.
Easy integration and multiple benefits

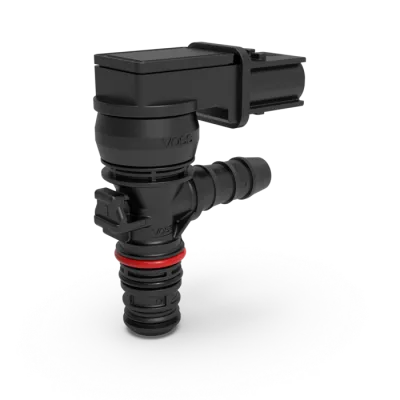

For measuring air pressure in the brake, air suspension, and auxiliary consumer circuits of commercial vehicles, VOSS has developed a concept that combines plug-in systems directly with a pressure sensor. The small and lightweight sensor is delivered pre-assembled on the appropriate connector and can be rotated 360° for easy installation. Complex structures with separate branches, adapters, and brackets are eliminated.
With the integrated pressure sensors, only a single connection point is required for the compressed air and sensor connections. VOSS thus minimizes the required installation space, reduces weight, and simplifies handling compared to conventional solutions.
- Common connection point for compressed air and sensor connection
- Sensor rotatable integrated into plug-in system
- Easy and quick installation
- Minimum number of components
- Small installation space
- Reduced weight
- Available with various VOSS plug-in systems and in various shapes
E-connector
Tyco HDSCS 3-pin Code B
Contact coating
tinned
Pressure range
0.85 bar to 16.85 bar (absolute)
Overpressure
23 bar (t ≤ 1 minute)
Supply voltage
8 V to 32 V
Overvoltage
35 V
Output signal
0.5 V to 4.5 V
Current consumption
≤ 15 mA
Temperature range
-40 °C to +100 °C (high temperature on request)
Total error
≤ ±1.5% (-20°C to +80°C)
≤ ±2.5% (remaining temperature range)
Validation
Based on ISO 16750
