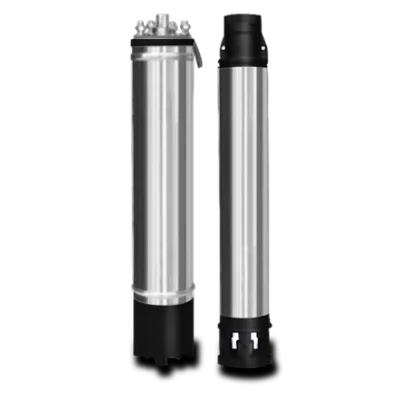

Waa Motors and Pumps - Borewell Submersible Pump

The Borewell Submersible Pump offered by Waa Motors and Pumps Pvt Ltd is engineered for applications that demand high efficiency and reliability in domestic water supply systems, small gardens, residential buildings, and water storage facilities. These pumps operate within a power range of 0.74 kW to 1.48 kW (1 HP to 2 HP), supporting both single-phase (180 - 240 V) and three-phase (350 - 440 V for 100 mm) AC power supplies at a frequency of 50 Hz. The pumps are designed with a maximum speed of 2880 rpm and feature maximum outer diameters of 72 mm and 98 mm. They are compatible with outlet sizes of 25, 32, and 38 mm. For enhanced durability, essential parts such as the NRV Housing and Suction InterConnector are crafted from Cast Iron, while the outer shell employs Stainless Steel. The impeller and diffuser are made from Noryl, and components like the stop ring, intermediate bearing, pump shaft, and coupling utilize robust materials like SS 304, SS 410, or proprietary engineering polymers.

Waa Motors and Pumps - Borewell Submersible Pump

Applications

Specifications

Material of Construction

Features
