Waa Motors and Pumps products

Solar Pumps

Waa Motors and Pumps - Surface Solar Pump

The Surface Solar Pump is designed to provide an efficient and sustainable solution for water pumping applications such as domestic use, small gardens, residential buildings, drinking water supply, and garden and lawn care. With a power range from 0.37 kW to 38 kW (0.5 HP to 50 HP), it operates using a 1-phase, 180 – 240 V, 50 Hz AC supply. It offers a head up to 350 meters, motor efficiency between 80% and 90%, and a motor speed ranging from 900 to 3600 rpm. Constructed with durable materials, the pump features an enclosure rated IP54/IP68, a 4 to 6-inch diameter, a stainless steel shaft, an aluminum motor body, a carbon mechanical seal, a cast iron adaptor, and super enamelled copper winding wire. Notably, it requires no grid electricity, is eco-friendly, easy to install and maintain, and incurs no fuel costs, making it well-suited for users seeking reliability and longevity in off-grid scenarios.

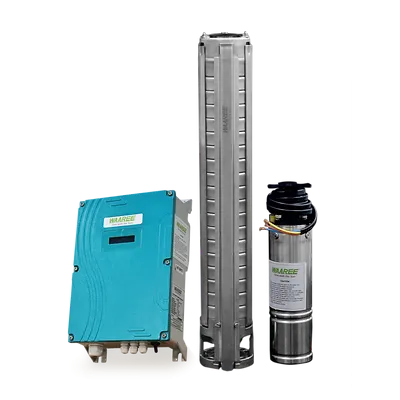

Waa Motors and Pumps - Borewell Submersible Solar Pump for Small Gardens and Residential Buildings

The Borewell Submersible Solar Pump is a versatile pumping solution designed for a wide range of applications including small gardens, residential buildings, and drinking water supply systems. Operating within a power range from 0.37 kW to 38 kW (0.5 HP to 50 HP), the pump is engineered to deliver reliable performance without the need for grid electricity, making it environmentally favorable and cost-effective. Built with robust materials such as stainless steel shafts, aluminum motor bodies, and cast iron adaptors, the pump is durable and ready to withstand challenging environments. Its motor operates efficiently with a speed range from 900 to 3600 RPM and boasts up to 350 meters of head. With an IP54/IP68 enclosure, it ensures protection against dust and water ingress. This solar-driven pump system is simple to install and maintain, provides an extended operational lifespan, and negates fuel costs, making it an efficient solution for sustainable water management.

Electric Pumps

Waa Motors and Pumps - Self Priming Pump for Domestic and Garden Use

The Self Priming Pump is a versatile and efficient pumping solution designed for a variety of applications, including domestic water supply, garden irrigation, and residential building water systems. The pump operates within a power range of 0.37 kW to 0.75 kW (0.5 HP to 1.0 HP) and utilizes a single-phase, 180-240 V, 50 Hz AC supply. With a head range of 1 to 38 meters and discharge capabilities from 48 to 1 LPM, it is suitable for tasks involving moderate elevation and transfer rates. The pump features a robust construction with crucial components such as the impeller made from gun metal, a cast iron delivery casing and suction chamber, and a stainless steel shaft. It exhibits a speed of 2800 rpm, and is installed with B class insulation, ensuring reliable performance. The design emphasizes self-priming capability, effective operation over voltage variations, and high-efficiency hydraulic performance to meet diverse user needs efficiently.

Waa Motors and Pumps - Borewell Submersible Pump

The Borewell Submersible Pump offered by Waa Motors and Pumps Pvt Ltd is engineered for applications that demand high efficiency and reliability in domestic water supply systems, small gardens, residential buildings, and water storage facilities. These pumps operate within a power range of 0.74 kW to 1.48 kW (1 HP to 2 HP), supporting both single-phase (180 - 240 V) and three-phase (350 - 440 V for 100 mm) AC power supplies at a frequency of 50 Hz. The pumps are designed with a maximum speed of 2880 rpm and feature maximum outer diameters of 72 mm and 98 mm. They are compatible with outlet sizes of 25, 32, and 38 mm. For enhanced durability, essential parts such as the NRV Housing and Suction InterConnector are crafted from Cast Iron, while the outer shell employs Stainless Steel. The impeller and diffuser are made from Noryl, and components like the stop ring, intermediate bearing, pump shaft, and coupling utilize robust materials like SS 304, SS 410, or proprietary engineering polymers.

Agricultural Pump

Waa Motors and Pumps - Surface Electric Pump

The Surface Electric Pump is designed for efficient water transfer in applications such as small gardens, residential buildings, and small farms. It operates with a power range from 0.37 kW to 0.75 kW, offering a motor that can handle head ranges from 5 to 30 meters and a discharge capacity ranging from 208 to 1 LPM. This pump is built to handle clean water and features a degree of protection rated at IP58. Constructed with durable materials like cast iron for the motor body and high-quality ball bearings, it is optimized for continuous duty under class B insulation. The pump is designed for noiseless operation with no suction and priming problems which enhances efficiency and reduces maintenance. With no need for a pump housing and equipped with a thrust bearing made of Carbon vs SS for low wear, it provides dependable performance in a variety of settings, ensuring reliable water supply and distribution.
