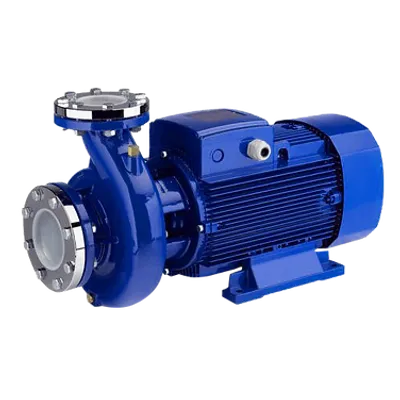

Waa Motors and Pumps - Surface Electric Pump
The Surface Electric Pump is designed for efficient water transfer in applications such as small gardens, residential buildings, and small farms. It operates with a power range from 0.37 kW to 0.75 kW, offering a motor that can handle head ranges from 5 to 30 meters and a discharge capacity ranging from 208 to 1 LPM. This pump is built to handle clean water and features a degree of protection rated at IP58. Constructed with durable materials like cast iron for the motor body and high-quality ball bearings, it is optimized for continuous duty under class B insulation. The pump is designed for noiseless operation with no suction and priming problems which enhances efficiency and reduces maintenance. With no need for a pump housing and equipped with a thrust bearing made of Carbon vs SS for low wear, it provides dependable performance in a variety of settings, ensuring reliable water supply and distribution.Most popular related searches
surface electric pump
electric pump
water storage tank
drinking water supply
water supply
domestic drinking water
water storage
drinking water
domestic water supply
building water
- Small Garden
- Residential
- Buildings
- Drinking Water
- Supply
- Garden & Lawns
- Water Storage Tanks
- Small Farms
Power Range: 0.37 kW to 0.75 kW (0.5 HP – 1.0 HP)
Versions: 1Ø, 200 – 240 V, 50 Hz AC Supply (CSCR)
Head: 05-30 m
Discharge: 208 - 01 LPM
Degree of Protection: IP58
Nominal Sizes: 25, 32 mm
Class of Insulation: B
Type of Duty: S1 (Continuous)
Liquid: Clean Water
Part Name: Material
Motor Body: Cast Iron
Stamping: M47 Electrical, Grade
Rotor: Aluminum Die, Cast
Bearing High Quality Ball, Bearing
Impeller: Cast Iron
Seating: Gland, Packaging
- No suction & priming problem
- Thrust bearing Carbon vs SS low wear high efficiency
- Noiseless operation
- No need of pump housing
