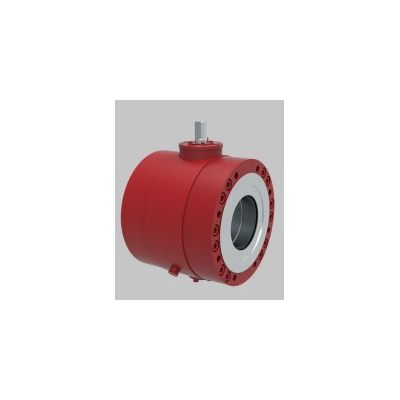

SRI - Wafer Trunnion Ball Valve
Wafer ball valve saves space and weight, thanks to the absence of flange. This design also allows replacement of a gate valve without modification of the piping should a reduced bore be considered
Most popular related searches
Range
- ND 1" (DN25) to ND 24" (DN600)
Classes
- ASME CLASS 150 to 2500
- DIN-PN PN 10 to 64
Material
- Carbon & low alloy Steels
- Stainless steels
- Duplex & Super Duplex
- Nickel Alloys
- Titanium
- API 6D/6A design & construction
- API 6D & ASME B1610 face to face
- Antistatic device
- Double block and bleed (DBB)
- Drain plug
- Connection ends upon request
- Firesafe design
- O-ring seals
- Self-Relieving seat
- Soft seat insert
- Trunnion mounted
- Lifting lugs /valve support
- Vent plug
On request
- Full/reduced/customize bore
- Manual or actuated operation
Optional Design features
- Automatic bleeding system
- By-pass system
- Double Piston Effect (DPE)
- Double Isolation & Bleed (DIB)
- ENP on seat/ball/stem/body
- Extended stem
- Heating jacket
- Locking device
- Metal to metal seats
- Overlay on seat pocket
- Overlay on dynamic seal pockets
- Overlay on all wetted parts
- Polymeric lip-seals
- Single Piston Effect
- Stem injection fitting
- Seat injection fitting
