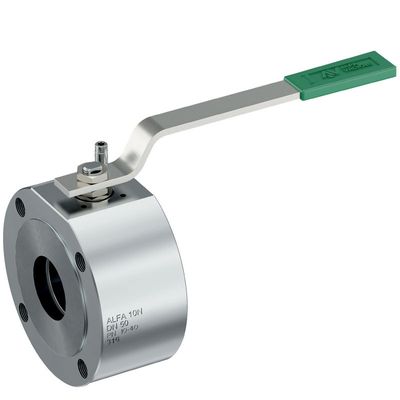

ALFA VALVOLE - Model 10N PN 10-40 / ANSI 150 -Wafer Type Ball Valve
FromAlfa Valvole
The Alfa 10N PN 10-40 ANSI 150 is a wafer type ball valve known for its compact, simple, and robust design. It is engineered to support a wide range of applications across various industries, accommodating different media. Constructed from either bar stock or casting, the valve is available in sizes ranging from 1/2 inch to 4 inches, or DN 15 to DN 100. The pressure rating for the valve is PN 10-40/ANSI 150, and it operates efficiently within a temperature range of -40°C to +200°C under standard execution. Its standard design features a contained ball within the body length, ensuring no ball protrusion when closed. The valve includes an antistatic device as per API6D and ATEX 2014/34/UE standards, with spring-loaded balls guaranteeing electrical continuity among all metallic components. The ISO 5211 top mounting provides a machined flange for easy actuator assembly. For enhanced safety, the valve also includes a fire-safe gasket configuration and an anti blow-out stem design, effectively preventing stem expulsion under overpressure conditions.Most popular related searches
Wafer type ball valve. Compact, simple and strong design. Wide range of application, industries and medium. Available in different materials (bar stock or casting).
- Size range: 1⁄2” ≤ Ø ≤ 4” / 15 ≤ DN ≤ 100
- Pressure range: PN 10-40 / ANSI 150
- Temperature range: -40°C ≤ T ≤ +200°C (standard execution)
