Adler SpA

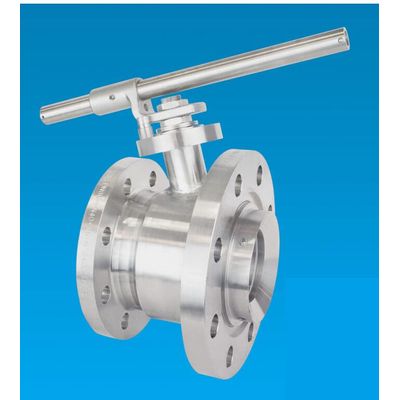

Adler - Model FA8 -Wafer Type Full Bore Ball Valve
FromAdler SpA
Ball valve “WAFER TYPE” end tank execution with tilted 15° stem , full bore, oversize flange for connections tank, manufactured from round bar, according to EN 12516.2; ASME B16.34; ISO 14313. Available size from DN 50 to DN 100 in stainless steel and special steel. Rating PN 10 ÷ 16 – ANSI 150 on request. Chevron ring on stem.
Most popular related searches
ball valve
full bore ball valve
safety system
electric actuator
pneumatic actuator
fugitive emissions
air testing
wafer type ball valve
valve testing
degreaser
On request:
- with o’ring on stem (patent n°00219688).
- fire-safe execution according to ISO 10497 API 607
- fire safe execution BS6755 API 607/6FA (patent n° 00219617)
- cryogenic execution ISO 28921
- according to PED 14/68/UE directive
- according to ATEX14/34/UE directive
- degrease according to ISO 23208 oxige service
- certified in safety system S.I.L. 3.
- certified for fugitive emission in class “A” ISO 15848.
- anti blow out proof stem
- construction and marking BS 5351
- carbon steel valves painted with first coat of epoxy-polyammidic RAL 5012 35 microns
- antistatic device BS5146/74
- top flange ISO 5211
- all valves 100% air tested under water at 100 psi
- PTFE / glass renforced PTFE half shell
- PTFE seats filled glass – carbon – S.S. – bronze, metal core
- stem extensions
- pneumatic actuator double/single acting
- electric actuator
- manual gear box
- pneumatic/electro-pneumatic positioner
