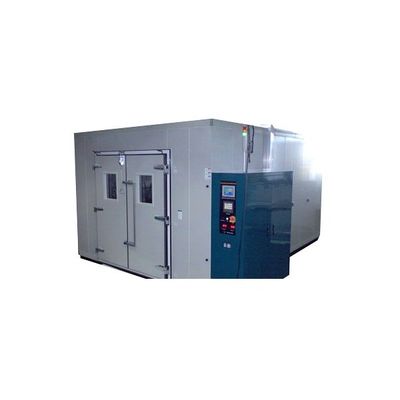

ETSP - Model WT Series -Walk-In Temperature Chamber
FromETSP Co., Ltd.
ETSP-WT series are wide range of walk in temperature chamber for testing large size components and products. Low noise, fast temperature variations, with balanced air distribution inside chamber.
Most popular related searches
temperature chamber
walk-in chamber
digital temperature controller
chart recorder
safety system
wind modeling
chamber test
profiling device
temperature test chamber
gaskets
- Uniform high accurate and reliable temperature control
- Welded and sealed inner chamber
- High temperature inner and outer door gaskets
- Friendly, flexible, up-to date control and management systems
- Allows easy servicing and upgrades.
- Computer control is available
- Network connection of several chambers to a single "master" control unit allowing centralized supervision both in local and remote mode
- Temperature range: -50 °C ~ +150 °C (changeable according to user`s demand)
- Temperature accuracy: Less than ± 0.5 °C
- Temperature uniformity: Less than ± 2 °C
- Heating rate: 0.5 ~ 5°C/min
- Colling rate: 0.5 ~ 5°C/min
- Input power requirements: 230V ±10%, 380V ±10%, 50Hz/60Hz, 1Ph/3Ph
- Chart recorder
- Computer interface converter with cable
- Ports hole (Cable ports 30mm or 50mm or 80mm)
- Shelves
- Intrared Rays light
- Heated load system
- T/C (Thermal couple) data acquisition (8, 16, 24, 32 Ch)
- Wind simulation system
- Chamber networking connection system (RS422/RS485)
- Customization available
