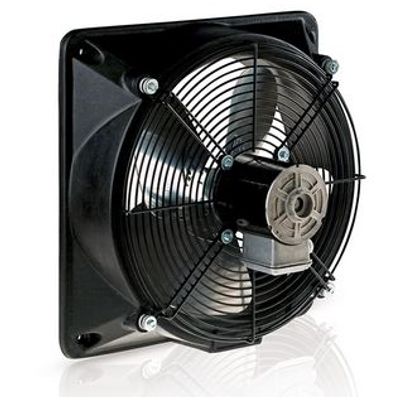

Fantini - Model AVP -Wall Mounted Axial Fans
The AVP series axial extractor fans are designed to be installed in domestic and commercial environments, where is required direct outdoor air expulsion. Not suitable for acid and dusty air.
Most popular related searches
axial fan
air conditioning industry
fan wall
atmospheric corrosion
industrial fan
air conditioning
ambient air
industrial axial fan
inlet shutter
gravity wall
- High density polyethylene plastic body, UV rays stabilized and resistant against atmospheric agents corrosion action.
- Statically and dynamically balanced impeller with aluminium blades and galvanized steel hub.
- Enclosed type motor, cooled directly by the airflow, fixed upon a safety protection grille provided of anti-vibration supports.
- For continuous operation in environments with max temperature 40°C.
- Speed regulator for monophase motors.
- Safety protection grille for the fan inlet side.
- Gravity shutter for wall or to be installed directly on the fan.
- High density polyethylene plastic body, UV rays stabilized and resistant against atmospheric agents corrosion action.
- PVC blades.
Homologation
- Reg. compliance (EU) 327/2011
Installation and use
- Designed for wall or panel mounting without using any kind of ducting.
