Camfil Dura-Pleat - Washable Spun-Bond Filters
DuraPleat media is made of 100% spun bond polyester in a pleated design that combines the best of both worlds: the high efficiency of pleated media and the versatility of synthetic materials. DuraPleat filter cartridges are for Farr Gold Series dust collectors for standard duty as well as medium temperature applications.

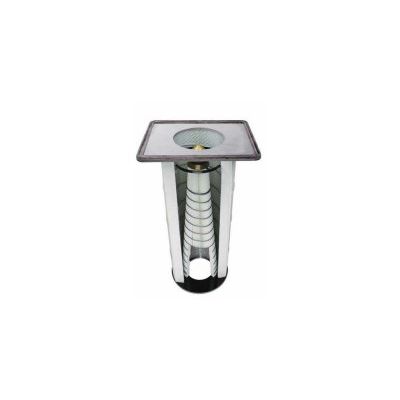

DuraPleat® Gold Cone®
Key Benefits
- Handles difficult dusts
- Washable
- Exceptionally long-lasting
Genuine Camfil APC Filters Offer:
- Double seal gasket
- For added insurance against leaks.
- No dust settles on top of the filter.
- Vertical filter orientation
- Dust falls down and away into a collection bin instead of onto other filters.
- Built-in handles
- For ergonomic removal and replacement.
- Washable media
- Our media is durable and reusable.
Media Options
Camfil APC filters with DuraPleat technology utilize four types of filter media:
- DPS - DuraPleat
- Our spun-bonded, heavy-duty, all-purpose polyester media.
- DPA - Aluminized
- Our DuraPleat media with a conductive aluminized finish applied for static dissipation.
- DPO - Hydro-Oleophobic
- Our DuraPleat media coated with an oil and water repellent finish.
- DPT - PTFE
- Our DuraPleat media with a laminated polytetraflouroethylene (PTFE) membrane for very high efficiencies of fine particulate and superior dust cake release.
Gold Cone Technology
The patented Gold Cone is only available from Camfil APC.
The Gold Cone in our DuraPleat filters adds 30% more filter media and disperses air evenly throughout the filter when pulse cleaned. The unique structure of the DuraPleat Gold Cone filter is engineered to clean better, last longer, and need less maintenance.
Specifications
Efficiency
- Up to 99.995% on 0.5 μm and larger particles by weight
Max Operating Temp.
- 200ºF (93ºC) 250ºF construction available
DuraPleat filters are rated up to MERV 16.
