Presona - Waste Extraction Systems
Presona offers the total solution for rational and effective handling of production waste from the graphic industry, from paper and cardboard manufacturers and from the packaging industry. The Presona waste extraction plant always builds on the same principle. Each specific plant is customized with respect to required air and material flow capacity, number of suction points etc. We offer the total solution – from a deep analysis of your requirements to the turn-key waste extraction plant – all from under the same roof. During the last decade we have supplied almost 200 waste extraction plants to big and small customers in Scandinavia and Europe.
- Rational Handling
- Better Working Conditions
- Energy Saving
- Material Recovery
- Better Total Economy
Rational waste handling with Presona
Presona offers the total solution for rational and effective handling of paper rejects and mackle in the graphic industry and the in paper, cardboard and packaging manufacturing process. Our turn-key system has numerous advantages:
Rational handling The rejects are collected at the source by means of a pneumatic extraction system. The material is extracted through suction hoods to a pipe line system with an integrated material separator for separation of dust and air. The dust-free material falls down into a compactor or baler.
Better working conditions A dusty environment is bad for both man and machine. The problems with dust emission from die cutters, milling machines, slitters and other processing machines are eliminated with the closed extraction system. The conveying air is fed through a filter for maximum cleaning.
Energy saving The filtered and dust-free conveying air is typically led back to the production room but can also be used to heat store rooms or office premises. To re-use already heated air means a better use of energy.
Material recovery Our waste extraction system transforms the rejects into a recyclable resource.
Tailor made Our waste extraction systems include a number of accessories and variations to meet the indivudual requirements of every customer.
Total economy The Presona turn-key system will save money and solve your waste problems once and for all. Expensive production premises can be fully utilized as the waste extraction plant can be placed outdoors.

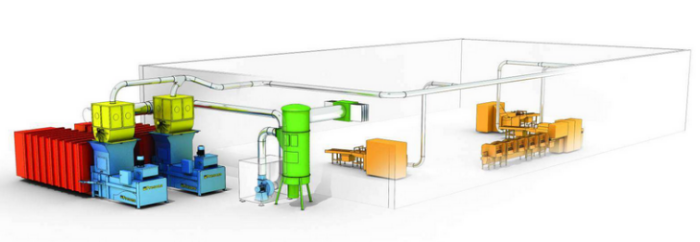

- Processing machines (trimmers, stitching/folding machines, glue binders, die cutters etc.)
- Pipe line for material transport: Dimensioning depending on material flow and and transport distance.
- Transport fan: With or without sound box depending on placing. The fan can be equipped with knives for cutting of trims with overlength.
- Material separator: For separation of solid material from the dust-laden air. The material falls without pressure into the compaction unit and the air moves through the air lock to a filter.
- Dust filter: Separates the dust from the air. The dust falls down in a container or a briquetting press placed under the filter.

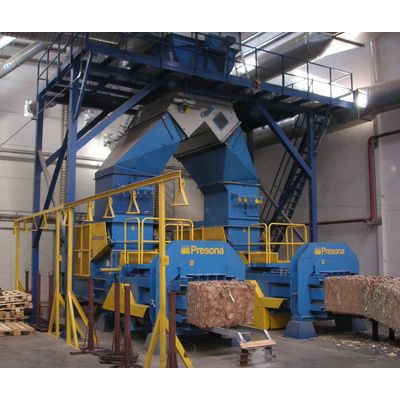

- Compactor (or baling press): The dust-free material is compacted into a closed container, or processed in a baling press depending on material volumes or the customer´s specific requirements.
- Container: Contains the solid, compacted rejects - now an attractive commodity.
- Air outlets: The dust free conveying air can be led back to the production premises or be used for heating of storage rooms etc.
