Waste Oil Refining Plant
Quick Details Condition: New Flow: depends on require Working Pressure: depends on the products Place of Origin: Istanbul, Turkey Usage: used engine oil refining Voltage: 380V 50HZ 3P (Customizable) Power(W): 380V.50HZ (Customizable ) Dimension(L*W*H): depends on the products Weight: depends on the products Certification: ISO9001 After-sales Service Provided: Engineers available to service machinery overseas Supply Ability Supply Ability: 10 Set/Sets per Month Packaging & Delivery Packaging Details: Container Port:any port

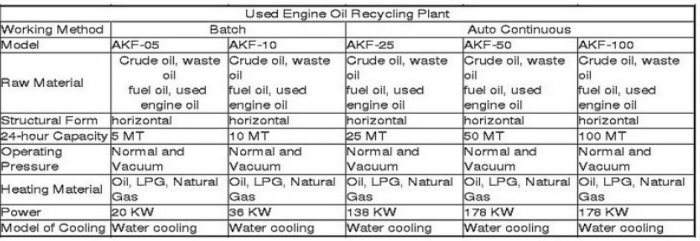

Akfen Muhendislik is the famous manufacturer for waste disposal plants all over the world, such as waste pyrolysis plant , waste sorting plant and waste oil refining plant. Our used oil refinery equipment can refine waste engine oil, lubricating oil, pyrolysis oil into diesel oil and gasoline. It has two types of batch refining plant and auto continuous refining plant. Our waste oil refinery machine has 5 models, and there 24-hour capacities are 5MT, 10MT, 25MT, 50MT, and 100MT. our customers can choose it according to different demands.
Detailed waste oil refining process is the sama as pyrolysis oil distillation plant

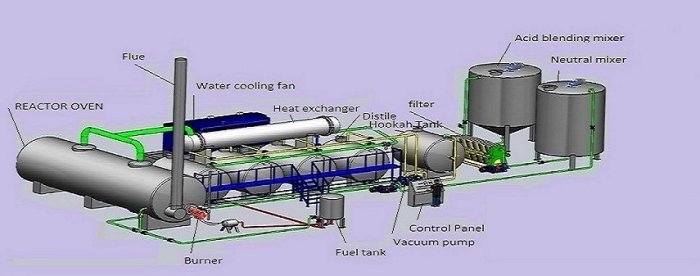

Introduction of Systems of Waste Oil Refining Plant
Heating system: This system mainly consists of fuel tank, heater for fuel oil, as well as heating furnace. It has advantages of high heating efficiency, low heat loss, as well as higher heating rate. Heater for fuel oil is used to control heat input rate, so as to ensure the operation stability of whole system.
Distillation system: this system consists of reboiler, fractionating tower, condensers and oil storage tank. Special structural design of fractionating tower shall improve quality of fraction. Both ends of tubular surface condenser can be opened easily; it is convenient for cleaning and maintenance.
Vacuum systems: this system consists of vacuum buffer tank and vacuum pump. Negative pressure distillation can decrease the temperature of each fraction. This design not only can reduce energy consumption and cost, but also can improve the production and quality.
