HullWiper Ltd

HullWiperWaste Water Filter System

SHARE

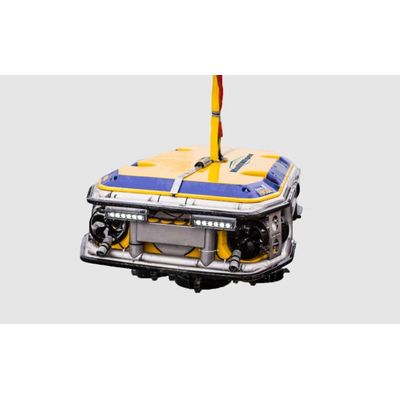

HullWiper collects marine fouling removed from hulls, rather than polluting local port water and risking the spread of harmful invasive species. Captured residues are pumped into a filter unit and then deposited into dedicated drums onshore, which are collected by a locally-approved environmental waste disposal company. The effectiveness of HullWiper's filter system in cleaning the waste water has been verified by AMT Environmental, an environmental analysis and consulting professional. A clean hull also improves a vessel's speed and reduces carbon emissions. HullWiper sprays adjustable high-pressure seawater jets directly onto a ship's hull at a very high velocity to dislodge waste materials, without using scrubbing, harsh chemicals or abrasive materials required for traditional methods. Unlike traditional brush cleaning, Hullwiper uses high-pressure jets for cleaning, thus leaving expensive antifouling surfaces smooth, intact and undamaged. The use of high-pressure jets for cleaning ensures that HullWiper does not damage the ship's expensive antifouling coatings.

Most popular related searches
  • Variable and increased speed dependent on biofouling and coating condition
  • Does not damage hull antifouling coating
  • Uses seawater as a medium for hull cleaning
  • Extremely good power and stability
  • Fast mobilisation / demobilisation
  • Operational 24/7

Power control cabinet

  • Power input of 220 V 50 Hz 3 phase, 12 kW
  • Digital instruments for volts, amps and Hz
  • Fuses and ground fault system
  • Connections for umbilical



Surface viewing

  • 60 cm (L) x 54 cm (W) x 64 cm (H)
  • PC rack with 2” x 32” monitors
  • Idcon overlay system and data presentations
  • Depth, date, time, heading, twist counter, video grabber and screen writer
  • Online recording



Umbilical

Kevlar armoured cable length 350m, outer diameter 24mm



  • 4 x 8 AWG
  • 4 x 12 AWG
  • 8 x single mode fibers
  • Auto altitude
  • Lighting
  • ¾” HP water hose 300 bar



High pressure pump

CD100 135 l/min



  • Working pressure 230 bar 3336 Psi
  • Maximum pressure 350 bar – 5076 Psi
  • Pump Triplex ceramic plunger
  • Remotely operated start-stop
  • Remotely operated pressure adjustment



Cleaning unit

  • 3x cleaning discs, each disc 480mm diameter; cleaning width 1,460mm
  • 4 nozzles on each disc; 12 in total
  • Waste collection system
  • Waste suction pump 38 m³ / hour



Generator

Diesel driven 60Hz/400V super silence

  • Standby power (ESP) 144 KVA / 115kW
  • Prime power (PRP) 152 KVA / 122kW
