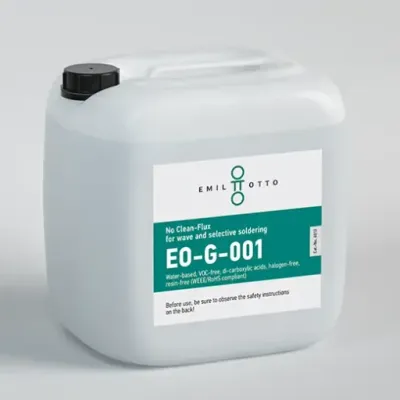

EMIL OTTO - Model EO-G-001 (multiflux) -Water-based Flux
EO-G-001 is an advanced water-based soldering flux specifically designed for wave and selective soldering applications. Its eco-friendly formulation is non-flammable and includes di-carboxylic acids, making it VOC-free, resin-free, and halogen-free, ensuring compliance with WEEE and RoHS standards. Despite its water-based nature, EO-G-001 matches the performance of traditional alcohol-based fluxes. Extensive practical usage has demonstrated that PCBs properly soldered with EO-G-001 do not require washing. This flux meets the ISO-9454: 2131 and DIN EN 61190-1-1 (ORL0) standards, ensuring high reliability and efficiency in electronic manufacturing processes. The product offers significant added value to customers by reducing the need for post-soldering cleaning while maintaining top-notch soldering quality.
- Appearance: colourless, clear liquid
- Hazardous goods: No
- VOC: 0.0 %
- Solids content: 3.5 wt.-%
- Acid number: 28 – 32 mg KOH/g
- Halogen-free: Yes
- Resiny: No
- Activators: di-carboxylic acids, VOC-free, resin-free, halogen-free
- Solvents: water-based
- Flash point: non-flammable
- Available as concentrate: Yes
- Durability: 12 months
EO-G-001 is a merely water-based soldering flux for wave and selective soldering. It is ecologically harmless and non-flammable. The EO-G-001 with its soldering-related properties is at least just as good as comparable alcohol-based soldering fluxes.
Practice has shown, that no washing is needed for PCBs properly soldered with EO-G-001.
- Non-flammable (no legal restrictions for transport, storage and handling)
- Very good soldering properties (capillarity, wetting)
- Broad process window (high thermal stability, good activity over a long interval)
- Very good residue behaviour (optically very clean, high SIR)
