RIOModel AG20 -Water Circulator

SHARE

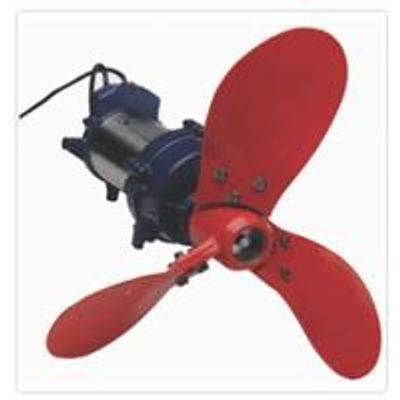

The RIO AG20 is a water circulator used in applications on larger water bodies to provide mixing, destratification, circulation and aeration, providing environmentally friendly and non-toxic algae control in lakes and ponds. The unit operation maintains constant water movement from the surface to the bed of a water body. The rotational operation of the propeller is designed to minimise damage to marine flora and fauna and lagoon infrastructure, providing power through a 15:1 reduction gearbox, to allow the large three-bladed propeller to rotate at 115 RPM.

Most popular related searches

Component Construction:

  • Central Motor Housing: stainless steel
  • Front & Rear Motor Flanges: cast iron
  • Propeller Boss & Blades: cast aluminium.

Standard supply of the RIO AG20 is in an Australian-sourced frame and float configuration and is installed via 3 x 4 mm stainless steel mooring cables shackled to static points on the lagoon bank. Supply can also be arranged for a completely submerged installation, mounted on a structure or concrete slab where it is desirable to completely ‘hide’ the unit.
