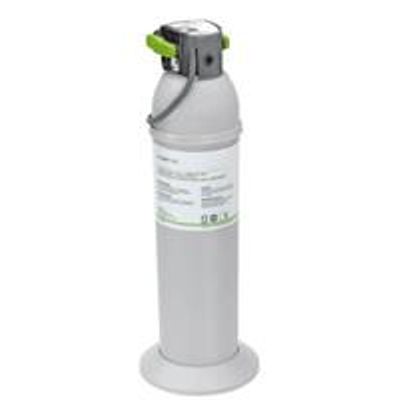

W&H - Model Multidem -Water Demineralizer System
The water demineralizer system Multidem supplies top quality demineralized water for generating steam in autoclaves. As a result, it ensures consistent and optimized performance, thereby extending the service life of your sterilizer or purification unit.
Additional spray gun
In addition, Multidem is also equipped with a spray gun. This is ideal for rinsing instruments prior to sterilization.
To replace a consumed filter cartridge, open the locking handle.
Turn the locking handle as far as it will go, then press the rinse button to release the pressure and take the filter head off the consumed filter cartridge.
Once you have pulled off the protective cap, place the filter head vertically onto the new cartridge. Multidem is then ready to go again.
- Consumed filter cartridges can be replaced quickly and easily without tools.
- Multidem is suitable for use with many conventional autoclaves and purification units.
- The spray gun can also be used to fill the sterilizers manually with demineralized water.
- For Multidem no external power supply is required.
- The water demineralizer system delivers consistently high water quality thus preventing limescale deposits in the sterilizers.
- Operating pressure: 2 bar – 8.6 bar (max.)
- Water temperature (inlet): 4 – 30 °C / 40 – 86 °F
- Nominal flow rate: 60 l/h
- Water quality (out): demineralized (EN 13060)
- Water quality (in): drinking water
- Weight: 2.7 kg
- Width/depth/height: 124 / 123 / 476 mm
- Operating position: vertical
- Tube lengths: 2 x 3 m
- Safety valve: yes
- Backflow preventer: EB
