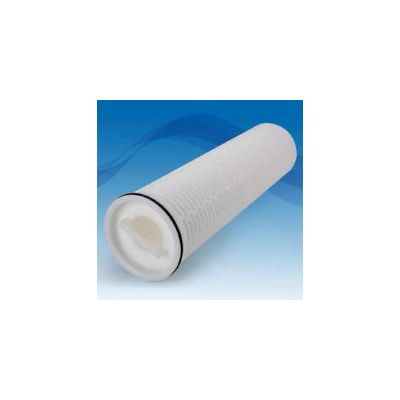

Shelco - Model HFC Series -Water Filtration High Flow Cartridge Filters
Shelco’s High Flow Cartridges are designed for industrial. and commercial filtration at an economic price and an. exceptional value. All Polypropylene construction. 98% retention ratings from .5 to 70 microns. Heavy-duty outer cage replaces costly stainless steel support basket. Handle provides fast and easy push / pull installation. O-ring seal on cartridge eliminates bypass. Inside out flow retains contaminant during change out. Multi-layer pleated media designed for high flow and long service life. Thermally bonded construction. FDA listed materials – All materials comply with FDA Title 21 of the Code of Federal Regulations Sections 174.5 and 177.1520, as applicable for food and beverage contact. Retrofits competitive high flow filter housings.
- Water
- Desalination
- RO Systems
- Food & Beverage
- Chemicals
- Coolants
- Electronics
- Power
- Sea Water
- Waste Water
- Pore Sizes
- 0.5, 1, 3, 5, 10, 20, 50, 70 micron
- Dimensions Nominal
- Length: 20" (50.8 cm), 40" (101.6 cm), 60" (152.4)
- Outside Diameter: 6" Cage (15.2cm)
- Surface area: 20" Length: 24 ft² (2.23 m²)
- 40" Length: 49 ft² (4.55 m²)
- 60" Length: 74 ft² (6.87 m²)
- Materials of Construction
- Filter Media: Polypropylene
- End Caps: Polypropylene
- Cage: Polypropylene
- Gaskets: EPDM standard
- Optional: Buna-N, Viton, Silicone
- Operating Parameters
- Maximum Operating
- Temperature:
- Recommended Changeout
- Differential Pressure: 20–25 psid (1.4–1.7 bar)
- Maximum Flow Rates*
- 20" element up to 175 GPM (662 L/min)
- 40" element up to 350 GPM (1325 L/min)
- 60" element up to 500 GPM (1892 L/min)
