Shelco - Model HFE Series -Water Filtration High Flow Eco Housings

FromShelco Filters

SHARE

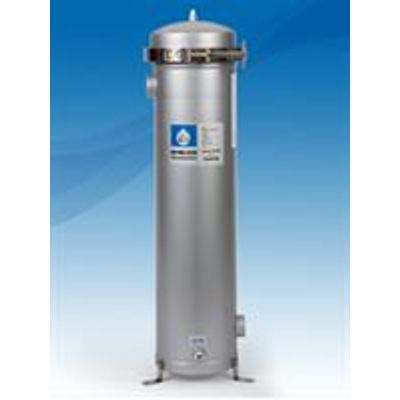

High Flow Eco Housings are designed for residential, commercial. and light industrial filtration needs at an economic price and an. exceptional value. Heavy-duty 304L or 316L stainless steel construction for maximum durability and corrosion resistance. V-band clamp closure for quick and easy cartridge change outs. Holds one high flow series element for fast and easy push / pull installation. O-ring seal on cartridge eliminates bypass. Inside out flow retains contaminant during change out. Stainless steel mounting tabs standard. Optional 134W (NSF 61) or 135 coating for brackish or sea water applications.

Most popular related searches

reverse osmosis desalination system

water desalination system

reverse osmosis system

industrial filtration

reverse osmosis desalination

water desalination

Water
Desalination
RO Systems
Food & Beverage
Chemicals
Coolants
Electronics
Power
Sea Water
Waste Water

Maximum Operating Pressure

150 psig (10.3 bar) @ 300°F (149°C)

Connections

Inlet/Outlet: 1”,1.5” or 2” FNPT (2” Standard)
Optional: 1”,1.5” or 2” FBSPP
Drain Ports: ½” FNPT
Vent Ports: ¼” FNPT

Finish

Exterior Surfaces: Glass Bead

Optional: Electro-polish, Passivate, 134W or 135 coating

Custom Options

Gauge Ports or Gauge Ports with Pressure Gauges
Mounting Legs
See ordering guide for complete selection of options

Materials of Construction

Head and Shell: 304L or 316L Stainless Steel
Connections: 304L or 316L Stainless Steel
Clamp Closure: 304L Stainless Steel
Vent and Drain Plugs: 304L or 316L Stainless Steel
Mounting Tabs: 304L Stainless Steel

Gaskets

Standard: Buna N (FDA Grade)

Optional: EPR, Silicone or Viton

Cartridge Type

HFEC – High Flow Eco cartridge, 6” Dia nom x 23” L,
Heavy duty exterior hard cage. (See HFEC data sheet for cartridge selection)
