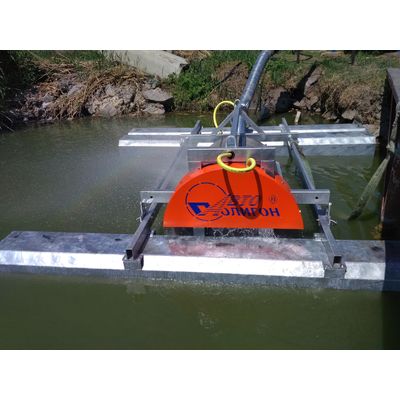

Poligon - Model DN-250 -Water-Intake Self-Cleaning Floating Filter
Designed for installation on the suction system of pump stations with a capacity of up to 450 CBM/hr. Allows water intake from shallow depths of surface water body, prevent mud and mechanical contamination from entering, scare away young fish and performs self-cleaning with water. Licensed as a fish protection device by the State Fisheries Agency of Ukraine.
Design and operating principle
Has a form of a rotating mesh drum with a check valve block. The whole structure is mounted on three sealed metal pontoons. The rotation of the drum is carried out due to the energy of the water supplied through a rubber hose from the pump station to the hydraulic turbine wheel nozzle that rotates the drum through a gearbox and a pair of gears. Self-cleaning of the drum is carried out by jets of water from flushing nozzles, to which water is supplied from the pump station with a pressure of at least 3 bar. The design provides for the adjustment of the deepening of the drum depending on the depth of the reservoir.
- Filterable particles size, max, mm 2(#9 mesh)
- Max output, l/sec 125
- Working pressure, MPa 0,6
- Test pressure, MPa 1,0
- Body and pontoons material steel 3 (S235JR)
- Filter element material steel 08?18?10 (ANSI 304)
- Check valve material steel 08?18?10 (ANSI 304)
- Body and pontoons coating DIN EN ISO 1461 Hot-dip galvanizing
