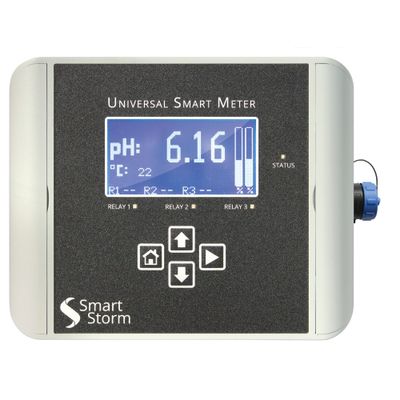

Smart Storm - Model USM -Water Quality Meter

FromSmart Storm Ltd.

SHARE

The USM water quality meter is a powerful and versatile meter that measures a wide range of environmental parameters. As standard, the USM will measure one of a number of ISE (Ion Selective Electrodes) plus an additional optional Modbus Electrode so the user can measure two parameters at the same time.

Most popular related searches

water quality meter

ion-selective electrode

chemical dosing control

water quality monitoring

Low cost Water Quality Meter meter
Range of Modbus sensors from Conductivity to Turbidity
A range of ISE measurements from pH/Redox to Potassium
Quick and simple user-friendly programming
Optional 20-year data logger
PC based reporting software
IP 66/4X Wall mounted weatherproof enclosure
3 Programmable relays
4-20mA output

Waste Water Analysis
Clean Water Analysis
Chemical Analysis
Fluoridation
Pools and Spas
Aquaculture
Chemical Dosing control

Ion Selective Electrode Choice#

pH
Redox
Ammonia
Ammonium
Calcium
Chloride
Fluoride
Nitrate
Potassium
Optional Modbus Electrode Choice*
Conductivity
Dissolved Oxygen
Turbidity
pH/ORP

*Note: All Modbus have integral temperature sensor measurement. #Note: Other ISE parameters available on request.

Sensor can be either free mounted in tanks or channels or inserted into pipes using Smart Storms bespoke pipe brackets.

General

Measurement Principle: See individual sensor data sheets
Recommended Sensor: Choice of ISE sensor plus a Modbus sensor.
ISE sensors supported: pH, Redox, Ammonia, Ammonium, Calcium, Chloride, Fluoride, Nitrate, Potassium
Modbus Sensors supported: Conductivity, Dissolved Oxygen, Turbidity, pH/Redox, Temperature
Operating range: -20oC to 50oC (-4 to 122oF)
Accuracy/Resolution: See individual sensor data sheets
Display: 3” Graphic LCD 128*64px, White on Blue with Backlight
Display Screens: User Selectable Scrolling between parameters
Security: User selectable passcode
Data Logger: 4 GBytes SD card. > 20 years memory
Reporting Software: Windows based software to display and print data tables, graphs and export data to
Excel.

Outputs

Analogue: 2x4-20mA fully galvanically isolated into 1K. Bar Graph display indicator.
Comms.: RS485 Modbus RTU
Relays: 3 NO/NC user programmable; 230VAC 5A/30Vdc 6A

Physical

Dimensions (mm): 130(H) x 160(W) x 60(D) mm
Weight Kg (lb): 0.66 (1.45)
Ratings: IP 66 / NEMA 4X
Approvals: ASA+PC, UL 94V-0
Mounting: Wall mounted

Power

Supply (AC): 100-240Vac, 5W (5V @ 0.38A)
Supply (DC): 9-36Vdc, 6W (5V @ 0.38A)

Electronic Performance

Processor: Texas Instrument MSP430, 16-Bit Architecture
Temperature Range: -20°C to 80°C (-4 to + 176oF)
