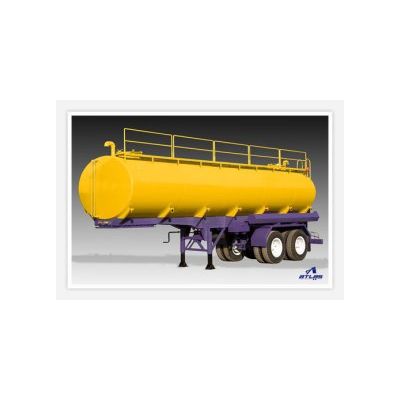

Water Tank Trailer

From

0

ATLAS Water Tanker trailers are precisely designed and fabricated in cylindrical, elliptical and 'D' shape with main rail to suit specification of tractor manufacturer and customers requirements for handling drinking water, salt water, brine, fuel and agricultural water. The tank superstructure & main rail are fabricated of high strength heat treated fine grain steel which conforms to ASTM standards SA 36 grade or equivalent which gives strength and durability.

General Specifications

  • Capacity: 6000-12000 Gallon
  • Material Grade: A36/Equivalent
  • Material test certification: Yes
  • Dish end type: Cylindrical/Elliptical/'D' shape
  • Inside baffles: Yes

Technical Specifications

  • Capacity 6000-12000 Gallons
  • Tandem/Tridem axles with mechanical/Air suspension
  • Top Manhole: 20' dia with filling hatch of 10' and pressure vent
  • External grit blasted to SA 2.5 & epoxy paint system
  • Piping: Depending up on the flow rate suitable piping, valves & fittings
  • 2 speed mechanical type Jost landing leg
  • Pump: Self priming centrifugal pump petrol/diesel driven or power take off driven
  • Tyre suitable to your application
  • Accessories: Foldable walkway with handrails, ladders, Discharge /filling hose
  • Hose box either side of the tank, Steel mud guards with rubber mud flap, rear bumper
  • All steel welded construction from A36/equivalent steel plates

Options

  • PTO driven pump
  • 360 Degree rotating beacons
  • Special design & equipment on request
