AquajetModel EcoClear -Water Treatment System

SHARE

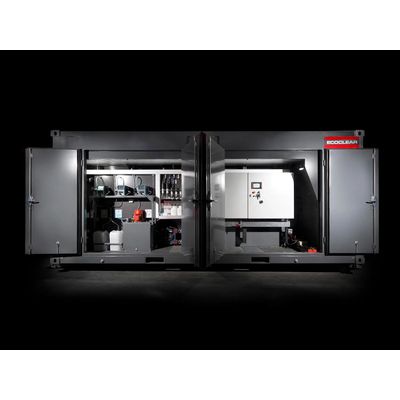

The EcoClear water treatment system is a state of the art solution dedicated for filtering hydrodemolition water on a completely new level. EcoClear enables the operator to safely discharge water back into the environment – without the need of an extra water reservoir, without the use of filters of any kind – and without pollution.

Most popular related searches
Green, lean, cleaning machine

It’s easy to see why concrete repair contractors are turning more and more to robotic hydrodemolition. The method provides fast, safe and efficient concrete removal. But, as governing bodies and project managers step up environmental regulations to protect communities and ecosystems, one important question remains – “What do you do with the wastewater?” The EcoClear water treatment system is a state-of-the-art solution dedicated for filtering hydrodemolition wastewater on a completely new level. EcoClear enables the operator to safely discharge water back into the environment or recirculate it back to the robot – without the need of an extra water reservoir, without the use of filters of any kind – and without pollution. Perfect for your operation, amazing for the environment.

  • Capacity: 20 m³/h (706 ft³/h)
  • pH outgoing water: pH 6-9
  • Turbidity outgoing water : 20-40 mg/l
  • pH adjusters: Carbon dioxide (CO²)
  • Poly aluminium chloride consumption: 10-30 g/m³ (0,01-0,03 oz/ft³)
  • Flocculant consumption : 1,5-3,0 g/m³ (0,0015-0,003 oz/ft³)
  • Carbondioxide consumption: 0,2-0,6 kg/m³ (0,2-0,6 oz/ft³)
  • Length (L1) : 6,058 m (ISO 20’)
  • Width (W1) : 2,438 m (ISO 8’)
  • Height (H1) : 2,591 m (ISO 8,5’)
  • Approx. dry weight: 8900 kg (19 621 lb)
  • Noise level: 50-55 dB
  • Drive source: Electric
