BioKube - Model Ultra Clean -Water Ultrafiltration Treatment System
BioKube UltraCLean system is an advanced water treatment device designed for removing all particles including bacteria and Nematodes from river water and other natural water sources. The water is treated by means of an extremely durable and efficient, third generation ultra-filtration membrane placed in an aeration chamber.

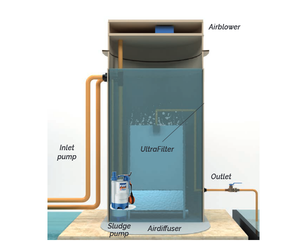

Water is pumped :"rom the source to the UltraCtean tank trough the inLet pump, from where it is sucked through the patented 2nd generation ultrafiLter which consists of stacked flat sheet membranes.
The suction happens solely by means of naturally created vacuum pressure The filter is kept free from clogging by having air bubbles constantly scrubbing the sides of the membrane.
The air is created in the airfolower and distributed through the pipe airdiffuser at the bottom of the tank. The sludge pump returns on a tri-daily basis all sludge particles and bacteria left in the tank created through the filtering process back to the source or a soak away pit. Read more on the process in details on page 4.
