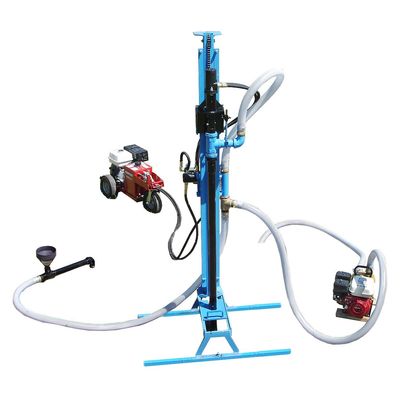

Lone Star - Model LS200H -Water Well Drill
The LS200H is excellent for drilling applications that require the added power and durability of a hydraulic system. The LS200H features a simple hydraulic system with pullback/pushdown force of up to 5,000 pounds for efficiently drilling to 200 feet in sand, clay and soft rock formations. The drill’s heavy-duty welded steel frame and rugged hydraulics stand up to the most demanding applications. The LS200H features a convenient bypass flow control for pushing to maximum force when anchored, and the drill’s swivel base design swings the rotary aside for quick, easy access to the borehole.
Most popular related searches
water well drill
water drilling
well drilling
water well
well water drilling
down the hole hammer
portable water well drill
portable water drilling
mud pump
well water
- Drilling Depth: 200 ft (61m)
- Borehole Diameter: 6 in (15 cm)
- Pull/Push-Back Force: 5,000 lbs/Up to 5,000 lbs (2,268 kg)
- Soil Types: Sand, clay and soft rock formations
- Applications: Water well drilling

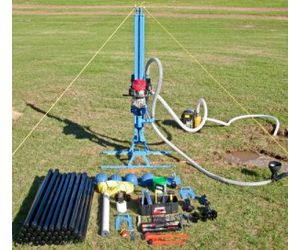

- Mud pump
- 2,500-psi hydraulic system
- Three 2-inch-diameter mud hoses (one 10-foot suction and two 10-foot discharge/bypass)
- 200 feet of 2-inch diameter M250 drill pipe with straight thread tool joints
- 4- and 6-inch step drag bits
- 6- and 7-inch reamers
- Toolbox and spare parts
- Anchor kit
- Down-the-hole hammer package
- Wheel kit
- Diesel engines for hydraulic system and mud pump
- Drilling Depth: 200 ft (61 m)
- Borehole Diameter: 6 in (15 cm)
- Pull/Push-Back Force: Up to 5,000 lbs (2.268 kg)
- Mast Weight: 174 lbs (78.9 kg)
- Max Drilling Torque Speed: 655 ft-lbs (888 N-m) 60 rpm at 6 gpm (22.7 L/m)
- Hydraulic Power Source: Honda 11 hp (8.2 kW)
- Hydraulic System: 6 gpm (22.7 L/m) at 2,500 psi
- Hydraulic Reservoir: 5 gal (18.9 L)
- Mud Pump: Honda 8 hp(4.1 kW)
- Max Head Max Flow: 100 ft (30.5 m) 165 gpm (624.6 L/m)
- Discharge/Suction: 2 in (5.08 cm)
- Frame: Heavy-duty welded steel
- Transportation: Packs into two separate crates for shipping and storage
