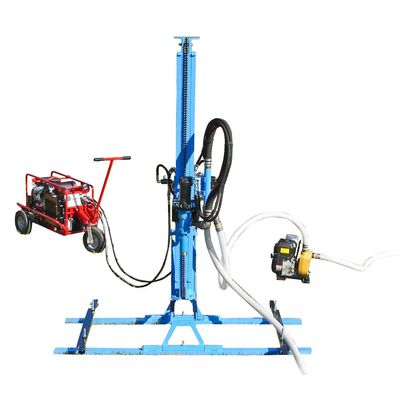

Lone Star - Model LS200H+ -Water Well Drill
The LS200H+ features the same operator-inspired design as the LS200H, but with a more robust hydraulic system and more powerful engine. Its high-capacity, load-bearing swivel coupled with a high-pressure hydraulic motor provides enhanced reliability and serviceability. With the addition of tricone roller bits and drill collars, the LS200H+ efficiently drills to 200 feet, even in rock formations. Its heavy-duty frame and reinforced base provide added durability.
Most popular related searches
water well drill
water drilling
well drilling
water well
well water drilling
down the hole hammer
portable water well drill
portable water drilling
well water
mud pump
- Drilling Depth: 200 ft (61 m)
- Borehole Diameter: 6 in (15 cm)
- Pull/Push-Back Force: 5,000-lbs/Up to 5,000-lbs (2,268 kg)
- Soil Types: Sand, clay and soft and hard rock formations
- Applications: Water well drilling

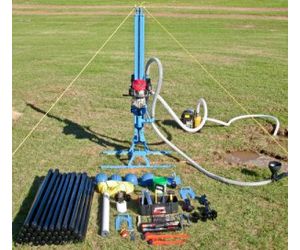

- Mud pump
- 3,000-psi hydraulic system
- Three 2-inch-diameter mud hoses (one 10-foot suction and two 10-foot discharge/bypass)
- 200 feet of 2-inch diameter M250 drill pipe with straight thread tool joints
- 4- and 6-inch step drag bits
- 6- and 7-inch reamers
- Toolbox and spare parts
- Anchor kit
- Down-the-hole hammer package
- Tricone roller bits and drill collars
- Wheel kit
- Diesel engines for hydraulic system and mud pump
- Drilling Depth: 200 ft (61 m)
- Borehole Diameter: 6 in (15 cm)
- Pull/Push-Back Force: Up to 5,000 lbs (2,268 kg)
- Mast Weight: 190 lbs (86.2 kg)
- Max Drilling Torque: 655 ft-lbs (888 N-m)
- Speed: 95 rpm at 10 gpm (37.8 L/m)
- Hydraulic Power Source: Honda 20 hp (14.9 kW)
- Hydraulic System: 10 gpm (37.85 L/m) at 3,000 psi
- Fuel Tank Capacity: 5 gal (18.9 L)
- Hydraulic Reservoir: 5 gal (18.9 L)
- Mud Pump: Honda 8 hp (4.1 kW)
- Max Head: 100 ft (30.5 m)
- Max Flow: 165 gpm (624.6 L/m)
- Discharge/Suction: 2 in (5.08 cm)
- Frame: Heavy-duty welded steel
- Transportation: Packs into two separate crates
