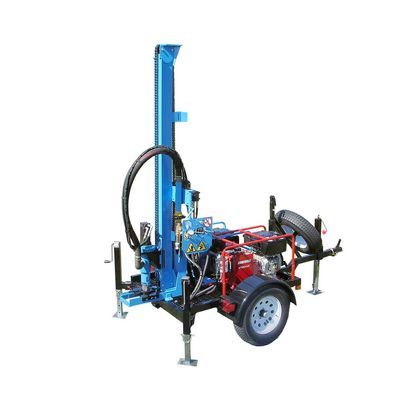

Lone Star - Model LST1 -Water Well Drill
The LST1 drill offers the perfect combination of performance and portability. Suitable for use in a variety of soils, the LST1 drills a 6-inch borehole up to 300 feet. The robust hydraulic system generates up to 5,000 pounds of pull/push-back force for efficient drilling in rugged terrain, and an optional anchor kit enables the unit to push beyond the trailer’s weight. A convenient bypass flow system allows precise control and adjustment to achieve desired push-down force while a three-way ball valve enables the operator to quickly bypass mudflow when adding pipe.
Most popular related searches
water well drill
water drilling
trailer mounted water well drill
well drilling
water well
well water drilling
down the hole hammer
three-way ball valve
well water
mud pump
- Drilling Depth: 300 ft (91.4 m)
- Borehole Diameter: 6 in (15 cm)
- Pull/Push-Back Force: Up to 5,000 lbs (2,268 kg)
- Soil Types: Sand, clay & hard rock formations
- Applications: Water well drilling

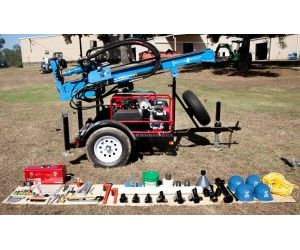

- Mud pump
- Powerful 2,700-psi hydraulic system
- Three 2-inch-diameter mud hoses (one 10-foot suction and two 12-foot discharge/bypass)
- 200 feet of 2-inch internal diameter Mayhew Jr. Drill Pipe with breakout lugs
- Load-bearing side inlet swivel with manual J-latch breakout tool
- Casing flush tool
- Bailer & rope
- Tool box & spare parts
- Anchor kit
- Single axle
- 3,500-pound (1,590-kg) rating
- Towable by ATV or truck
- Three leveling jacks
- 2-inch ball coupler
- Spare tire
- 4- and 6-inch step drag bits
- 6- and 7-inch reamers
- Down-the-hole hammer package
- Roller cone bits
- Drill collars
- Diesel engines for hydraulic system and mud pump
- Drilling Depth: 300 ft (91.4 m)
- Borehole Diameter: 6 in (15 cm)
- Pull/Push-Back Force Operating Weight: Up to 5,000 lbs (2.268 kg) 1,750 lbs (793.8 kg)
- Max Drilling Torque: 655 ft-lbs (888 N-m)
- Speed: 75 rpm at 8 gpm (30 L/m)
- Hydraulic Power Source: Honda 13 hp (9.7 kW)
- Hydraulic System: 8 gpm (30 L/m) at 2,700 psi
- Hydraulic Reservoir Mud Pump: 5 gal (18.9 L) Honda 13 hp (9.7 kW)
- Max Head: 190 ft (58 m)
- Max Flow: 200 gpm (757 L/m)
- Discharge/Suction: 2 in (5.08 cm)
- Frame: Heavy-duty welded steel
- Transportation: Trailer-mounted
All trailer-mounted drills can ship fully assembled in a 20-foot container or knocked down and palletized.
