Dyacon - Model MS-150 -Weather Station

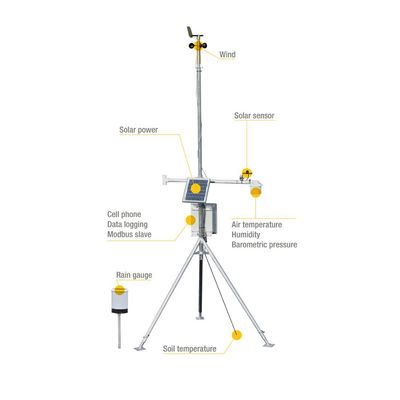

The Dyacon MS-150 is a preconfigured automatic weather monitoring station that requires no programming or specialized installation services. MS-150 is shipped with control module (data logger) with solar panel, and the following sensors: wind speed and direction (with wind gust and direction averaging), barometric pressure, relative humidity, ambient temperature, solar sensor, and rain gauge. Additionally, the MS-150 features an embedded cellular module, enabling users to request weather reports via simple text messages, providing a dependable and universal interface for weather updates. The station can also be integrated with programmable logic controllers (PLCs) or personal computers (adapter and software required) through the Modbus RS-485 slave port. When connected to a cellular data plan, the MS-150 automatically uploads weather data to DyaconLive™ and other data management platforms, facilitating cost-effective and reliable online monitoring, graphing, and analysis.- Preconfigured weather station
- Integrated cell phone
- SMS text message reports
- Air temperature
- Relative humidity
- Dew point
- Heat index
- Barometric pressure
- Wind speed and direction
- Wind gust
- Solar sensor
- Rain gauge
- USB and SMS configuration
- Data logging
- DyaconLiveTM Web Portal
- Weather Underground® compatible
- Email of log data
- FTP of log data
Controller: A weather station control module integrates the data logger, sensor inputs, LCD display, USB port, Modbus slave port, solar charge controller, and cell phone on a single circuit board. The highly integrated circuit board increases reliability, improves installation simplicity, and reduces cost.
Construction: MS-15oTM uses Dyacon modular sensors to build a solution that is unique, expandable, and flexible.
Connectors: Wire connections use pluggable terminal blocks for easy and secure wiring.
Wireless Data: An embedded cell phone provides direct SMS text message reports as well as data uploads by FTP and email.
Web Portal: DyaconLiveTM web portal and Weather Underground compatibility provide easy and intuitive access to weather data where ever you may be.
Wired Data: The control module is equipped with a Modbus slave port for connecting to data hosting equipment, such as programmable logic controllers.
Installation: MS-150TM is designed to be installed and maintained by the user. Sensors shipped with the unit are preconfigured and tested prior to shipment. Full instructions are provided so that setup can be done without technical support.
- Environment site assessment
- Weather observers
- Road maintenance
- EPA compliance
- Education
- Rural airports
- Industrial Safety
- Agriculture and livestock
- Media outlets and public information
Measurement Capability*
- Modbus Host Port 1: WSD-1 – Wind direction, wind speed
- Modbus Host Port 2: TPH-1 – Air temperature, relative humidity, barometric pressure
- Analog Port 1: PSP-110 – Solar sensor (Pyranometer)
- Analog Port 2: Open
- Counter Input: RGTB-525 – 0.01” rain gauge
Other Features
- Data Logging: Non-volatile data logging
- Output: Available for future upgrade of Smart-FanTM Aspiration Driver
Cabled Data Connections
- Modbus Slave Port (RS-485): Sensor data for PLC, DCS, BAS, SCADA, data loggers, and computers
- USB Device: Configuration utility. Log data retrieval
Wireless Data Accessability**
- SMS Text Message: SMS text message reports sent to requesting cell phones. Low battery alert
- Web Portal: Automatic direct upload or real-time data to WeatherUnderground.com or DyaconLiveTM (Dyacon.net)
- Email: Email of data log file as CSV attachment sent directly from the weather station daily, weekly, or monthly
- FTP: Automatic file transfer of CSV log file to customer server, sent hourly, daily, weekly, or monthly
Electrical
- Power Input: Solar power 8 VDC to 26 VDC, 12 VDC nominal
- Current: <35 mA avg
- Battery: 12 VDC, 7 Ah, 1 week autonomous operation
Accessories and Sensors
- Tripod: Tripod-1 and Quick-deployment Tripod
- Aspirator Kit: KIT-ASP-122
- Thermistor Probe (Soil): TSSP-1
- Soil Moisture Probe: SMEC-5
- Globe Temperature: GT-2
- Software: Dyacon CM Utility (Free)
Dyacon Weather Station Display
Dyacon Weather Connect
*Refer to specific sensor and control module data sheets for detailed specifications for each component.
**Cell phone data service required.
