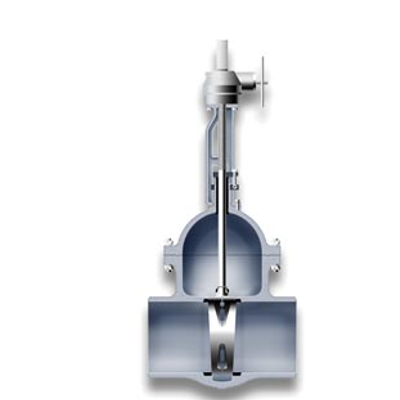

Babcock - Model 22 -Wedge Gate Valves
Wedge gate valves are commonly supplied with solid wedge up to 2” size and with flexible wedge for larger sizes. The latter design consists of two independent and flexible wedge halves, that allow a relative movement to accommodate changes in the body seat angles.
Most popular related searches
The result is a valve with a high pressure sealing performance, with optimum results at low differential pressures, meeting industrial valve requirements, moved toward larger sizes and higher pressures and temperatures.
Design: ASME B16.34, API 600 for cast valves and API 602 for small size forged valves
- Type: Wedge Gate
- Bonnet: Bolted
- Sizes: 1/2″ – 72″
- ANSI Class: 150-2500
