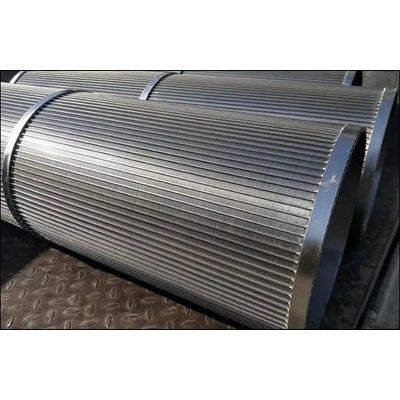

Atlas Wedge - Wedge Wire Screen for Rotary Sifters

Wedge sifter screen, fit for Kasons model YO-SS sifter
Opening: 150 micron stainless steel sifter

Reasons to Choose Wedge Wire Sifter Screen:

Four types of mesh screens are available for centrifugal rotary sifters including: high tension nylon mesh, woven wire screen, perforated panels and wedge wire.

Among the four types, wedge wire screen is most welcome with the following features: precise opening, welded construction, metal materials and shape keeping. This screen has low requirements for the moisture content of the processed materials, suitable for Sieving fine particles of materials under various conditions.

Compared with the nylon mesh, the metal wedge wire is flat and easy for use. Compared with woven wire, the wedge wire has welded structure that ensures good strength and durability, it does not change form and will keep precise sifting function under great pressure. Also, the metal slots (stainless steel) wedge wire sifter screen surface is self-cleaning. Compared with strong perforated metal screen, the wedge wire sifter screen shows greater strength with backing of metal bars.

Stainless Steel Wedge Wire Sifting Screen is three-dimensional and multi-functional screen for powder and liquid sifting. Generally it has three main applications: classification or sieving; solid-liquid separation or filtration; washing and cleaning. Metal sifter screen is widely used in powder retaining, filtering and quarry mine development, building materials, chemical, abrasive, ceramic, pharmaceutical, papermaking, metallurgy, mining, food industry, etc.

We also supply other types of sifter screens mesh:

Sifter Screens Mesh ( Woven Type)

• Sifter Screen Mesh, SS, #16, 3X100FT
• Material: Stainless Steel
• Screen panel size: 4x8ft
• Mesh: 8
• Mesh: 10
• Mesh: 12
• Mesh: 14

Hammer Mill Screens ( Perforated Type)

• Dimension: 4x8ft
• Material: BI perforated sheet
• Thickness: 2mm
• Size: 1.5mm, 2mm, 3mm, 4mm, 8mm
• Sifter screen square mesh (Panels)
• Length - 1650mm 2590 mm
• Width - 400 mm 1240 mm
• Size - 2 mm 3 mm

Nylon Mesh Screen for Rotary Flour Sifter

• Flour sifter filter, simple in construction, thicker than 1/8 inch round cord material at end.
• Construction and material details
• Ends cotton or solid nylon material or Heavy cotton
• Joint, solid Heavy Nylon /cotton material
• 25 mesh or 750-800 micron , 25 per inch mesh nylon wire or polyethylene wire cloth.
• Inside diameter is 9.25 inches
• Overall length is 14.5 inches from one end to another end.
• Both end has 1.5 inch nylon/cotton felt pad with string inside
• Open filer mesh area 11.5 inches length { 14.5 inches- (2 X 1.5 inches) =11.5 inches}
• Flour sifter mesh size 25-30 mesh
