Atlas Wedge - Wedge Wire Sugar Screen
Wedge wire screen structured sieve bends are especially suitable for sugar mills and flour mill sifting uses. The wire bends sugar screen has the looped smooth surface offering uniform and accurate slots and mechanical strength unrivalled by other mesh screens.
Sugar Screen Technical Parameters
- V-shape wire width(mm): 1.6~4
- Screen aperture(mm): 0.2~12
- Max Size(mm): 2050x1800
- Optional screen plate shapes: Cylinder, Arch, Rectangle, Square, etc.
- Materials: 304, 304L, 316, 316L stainless steel wedge wires.
Triangle wire for screening:
- Width=1.5mm Height =4.0mm
- Width=2.2mm Height =4.5mm
- Width=2.8mm Height =5.0mm
- Width=3.1mm Height =6.0mm
- Width=3.4mm Height =7.5mm
- Width=2.2mm Height =5.0mm
- Width=2.8mm Height =6.5mm
- Width=3.4mm Height =7.5mm
- Width=5.0mm Height =10.0mm
- Aperture: 0.10mm-10mm
- Open area :6.3-57.1%
Triangle wire for screening:
- Width=1.0mm Height =2.0mm
- Width=1.5mm Height =2.5mm
- Width=1.8mm Height =3.0mm
- Width=2.7mm Height =4.2mm
- Width=2.3mm Height =3.8mm
- Width=2.6mm Height =4.3mm
- Width=2.9mm Height =4.7mm
- Width=3.2mm Height =5.3mm
- Width=3.6mm Height =5.7mm
- Aperture: 0.2mm-5mm
- Open area :6.3-67.6%
We can produce different width, length, slit width and wedge wire size as per your filter flow requirement and filter materials. We can design different frame and carriage, add flange and edge as per your specific requirement.

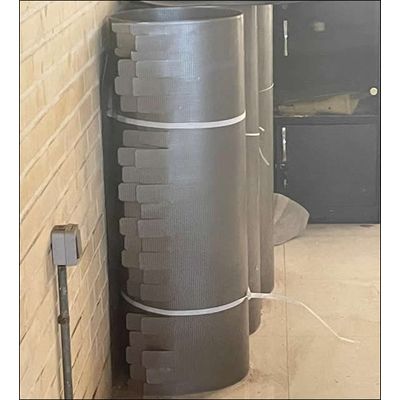

Perforated Screens for Sugar Mill Aplication
All Screen flat on the floor, no tension and wave, easy to install to centrifuge machine.
Screens used for separating sugar and molasses.
Stainless Steel 304 Perfoarated Screen with annealing before perforating with margin 12 mm at four sides Hole dia. 0.5 mm ; Thk 0,33 mm , Incl. 2 x 12 mm margin at length and width side.
- Size : L. 72,75" X W. 22"
- Size : L. 72,75" X W. 22,25"
- Size : L. 73,22 X W. 22,27"
- Size : L. 75" X W. 22,25"
- Size : L. 85,20" X W. 21,81"
- Size : L. 93,82 X W. 20,47"
- Size : L. 96,75" X W. 22,25"
- Size : L. 96,45" X W. 20,5"
- Size : L. 190 cm X W. 50 cm
- Size : L. 217 cm X W. 57 cm
- Size : L. 237 cm X W.57 cm
- Size : L. 235 cm X W. 52 cm
Stainless Steel 304 Perforated Screen with annealing before perforating fot batch centrifuge , complete with locklap joint and margin 8 mm on length sides
- Size : L. 3900 mm X W. 762 mm x thk 0,41/ 0,45 mm Hole dia. 0,5 mm.
- Size : L. 3900 mm X W. 800 mm x thk 0,41/ 0,45 mm Hole dia. 0,5 mm.
- Size : L. 4230 X 1067 mm X thk 0,41/0,45 mm Hole dia. 0,58 mm.
- Size : L. 4500 x 1150 mm X thk 0,41/0,45 mm Hole dia. 0,58 mm.
- Size : L. 4810 X 1220 mm X thk 0,41/0,45 mm Hole dia. 0,58 mm.
- Size : L. 4100 X 1050 mm X thk 0,41/0,45 mm Hole dia. 0,58 mm.
Working Screen for Krupp Type KB 1750
- Size : L. 4967 X 1160 X thk 0,41/0,45 mm, 1 set= 2 shts
- Hole dia. 0,58 mm , Total 432 HPSI
- Working Screen for TSK V 1300
- Size : L. 4340 X 1000 X thk 0,41/0,45 mm
- Hole dia. 0,58 mm
