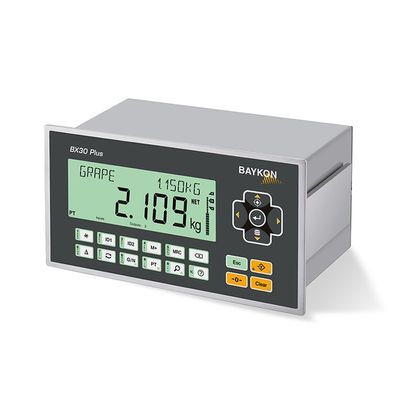

Baykon - Model BX30 Plus / BX30D Plus -Weighing Indicator

SHARE
BX30 Plus & BX30D Plus are high accurate, multifunctional weighing terminals which are used in wet, hygienic and harsh industrial areas. This weighing indicator can be programmable for weighing, labelling, checkweighing, classifying, filling, peak hold and dynamic weighing applications. Three user programmable keys can be set for user applications to provide practical and error free operation. The instrument has 4 pcs memories; ID1, ID2, preset tare, item limit values; each have 500 records capacity.

BX30 Plus & BX30D Plus have important features for process weighing; strong calibration alternatives including electronic calibration (eCAL) and various integration interfaces with PC or PLC via RS232C, RS485, RS422, USB, Ethernet TCP/IP as a standard. Fieldbuses such as Profibus, Profinet, CANopen, EtherCAT, CC-Link, Powerlink, Modbus RTU, Modbus TCP, EtherNet/IP, Analogue output, Digital I/O are optional.
Most popular related searches
weighing indicator
weighing terminal
process weighing
checkweighing
checkweigher

Main Features

  • IP67 protected front panel for wet and harsh areas
  • Color changing display, SmartAPP & 16 digit alphanumeric info line
  • User programmable 3 keys
  • On board Ethernet TCP/IP

High Technology & Performance

  • Up to 300 000 display resolution
  • Up to 1600 conversions per second
  • Application based SmartBars
  • Changing color for prompting
  • High capacity tank scales supported by eCAL - electronic calibration & span correction of non-empty tanks

Typical Applications

  • Weighing and data collection
  • Customized labelling with barcode
  • Classification, checkweighing, filling and peak hold
  • Livestock and dynamic weighing with strong filters and algorithm

4 Memories Each With 500 Items

  • 2 pcs ID1 & ID2 identification data
  • Preset tare to enter specific tare
  • Limit values memory for weighing
  • Item limits for check weighing and for classifying of packages
  • Automatic memory linkage to ID

Integration & Connectivity

  • Profibus, Profinet, CANopen, Ethernet TCP/IP, EtherNet/IP, EtherCAT, CC-Link, Powerlink, Modbus RTU, Modbus TCP,Analogue output and Digital I/Os
  • Galvanically isolated, RS232C and RS485, RS422 serial ports
  • Micro USB port
  • Ethernet TCP/IP
