OTT HydroMet Sutron - Well Cap Versatile Groundwater Telemetry System

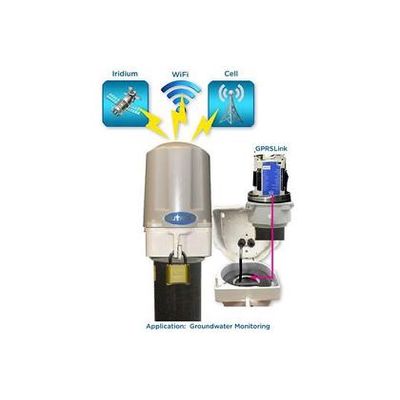

Sutron’s Well Cap Groundwater Monitoring Station makes it easy to automate measurement of groundwater wells. The cap has the following advantages:

• Tamper-proof packaging
• Capable of measuring sensors over SDI-12, 4-20ma, and RS485
• Low power with integrated 7 Ahr battery for long term reliable operation
• Optional cell modem and dataplans
• Optional Iridium modem and dataplans
• Optional solar panels to reduce battery servicing intervals
• Mounts on NPS 2 (2.375”, 60.33mm OD), 3 (3.5”, 88.9mm OD) or 4 (4.5”, 114.3mm OD) pipe
•  1/4 hasp for customer provided lock
•  Built-in Sutron X-Link logger/transmitter
•  IP67 housing for battery/electronics/antenna with screwless access.
•  Powder coated cast aluminum construction with ABS plastic dome.
•  Hinged design provides access to sensors without opening electronics compartment
•  Sensor hanger plate with room to insert electronic tapes or other calibration devices.
•  Concealed bolts to fasten the cap to the well casing.
•  Compatible with a variety of sensors with SDI-12 or analog output.
•  Optional solar panel for continuous operation
•  DIMENSIONS Diameter: 8” max (20.32cm) Height: 12” (30.48cm) Weight: : 6.7 lb including battery & logger (3.04kg)
