OTT HydroMet - Veralto products

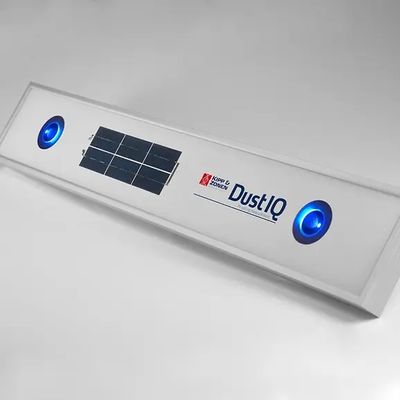

DustIQ monitors the loss of light transmission caused by dust, sand, pollen, or any other particles on PV panels using Kipp & Zonen’s new and innovative Optical Soiling Measurement (OSM) technology. The DustIQ has no moving parts and it does not need sunlight to operate. Rather, it uses an internal light source to measures scattered and reflected light that is directly proportional to soiling accumulation on the surface of the DustIQ.

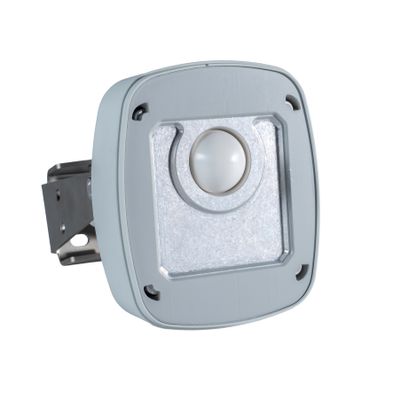

The OTT FMS Flood Monitoring System integrates the OTT SensorLink 1000 IoT device with the next generation OTT RLS 500 radar water level sensor offering reliable, easy-to-install, and low-maintenance water level measurements without the need for extensive technical knowledge. With OTT HydroMet’s decades of experience and trusted reliability, the OTT FMS ensures accurate and timely data collection from critical monitoring locations, enabling stakeholders to make informed decisions during flood events.

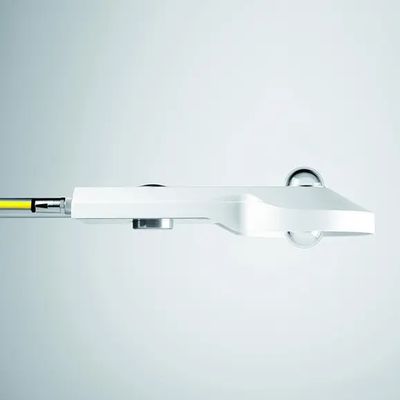

The CNR4 net radiometer measures the energy balance between incoming short-wave and long-wave Far Infrared (FIR) radiation versus surface-re?ected short-wave and outgoing long-wave radiation. The CNR4 net radiometer consists of a pyranometer pair, one facing upward, the other facing downward, and a pyrgeometer pair in a similar con?guration. The upper long-wave detector of CNR4 has a meniscus dome. This ensures that water droplets roll off easily and improves the field of view to nearly 180°, compared with a 150° for a flat window. Two temperature sensors, a Pt-100 and Thermistor, are integrated for compatibility with every data logger.

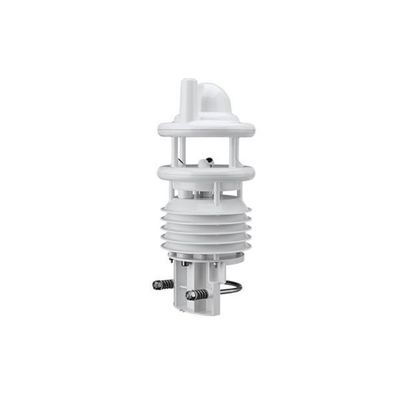

Compact all-in-one weather sensor for measurement of temperature, relative humidity, air pressure, wind direction and wind speed. From the WS product family of professional intelligent measurement transducers with digital interface for environmental applications. Integrated design with ventilated radiation protection for measuring: Air temperature, relative humidity, air pressure, wind direction and wind speed. One external temperature or rain sensor is connectable.

First and only compact all-in-one weather sensor with detection of lightning strikes. From the WS product family of professional intelligent measurement transducers with digital interface for environmental applications. Integrated design with ventilated radiation protection for measuring: Air temperature, relative humidity, precipitation intensity, precipitation type, precipitation quantity, solar radiation, lightning detection, air pressure, wind direction and wind speed. One external temperature sensor is connectable.

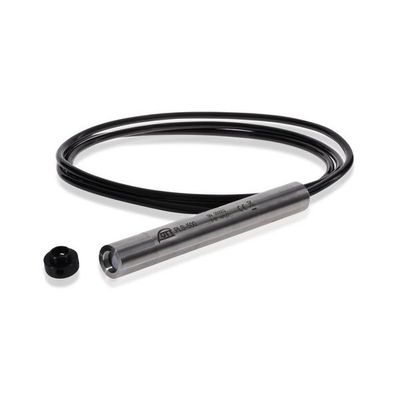

The OTT PLS 500 measures water level, depth to water, or pressure by means of an easy to maintain, ceramic pressure cell. This highly accurate sensor includes design features such as four internal compensations, stainless steel housing, and a rugged cable making it ideal for monitoring water level in a variety of applications. Common communication protocols (SDI-12 and Modbus RTU) allow for seamless integration with external data loggers. The accurate temperature measurements and built-in microcontroller compensate for environmental changes in water density. Built-in QA/QC and metadata along with reduced sensor drift allow you to have full confidence in your long-term data.

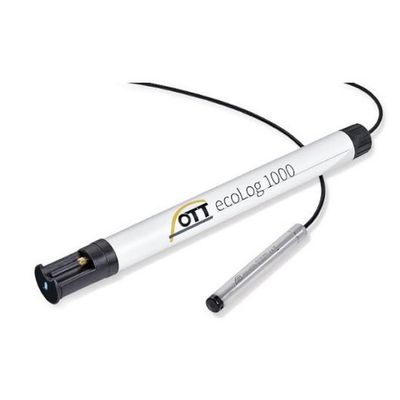

Self-contained, robust surface and groundwater level logger for measuring water level, temperature, and conductivity. The OTT ecoLog 1000 is a self-contained, robust surface and groundwater level logger for measuring water level, temperature, and conductivity. It provides reliable system up-time and accurate measurements while avoiding data gaps. It’s simple to operate using just a smart phone or PC via integrated Bluetooth Low Energy (BLE) - no additional tools for maintenance or battery replacement. It supports mobile devices, smart phones, and tablets operating with Android, iOS or Windows 10. Configure and monitor your data remotely with integrated two-way mobile communication to avoid unnecessary, expensive trips to your measurement site and send encrypted data with automatic retries if transmission fails.

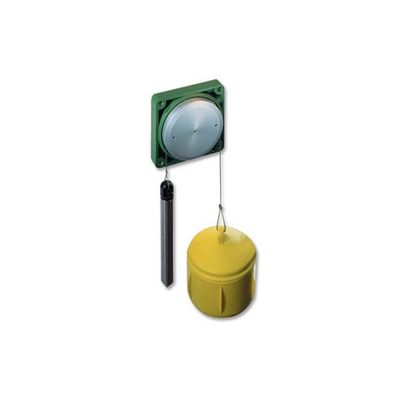

OTT SE 200 float-operated shaft encoder water level sensor. The OTT SE 200 float-operated shaft encoder level sensor provides proven water level measurements in continuous, unattended monitoring in ground and surface water applications. A measured value is being calculated via internal processing and is available via the interfaces SDI-12 and 4 ... 20 mA.

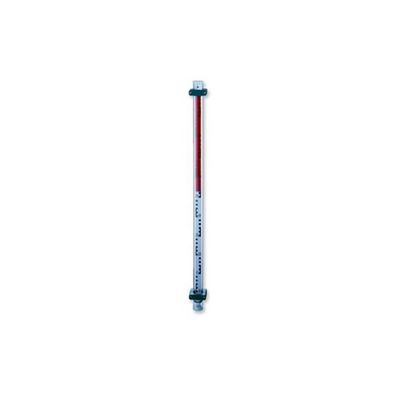

OTT Maximum Level Gauge to indicate max water level after flood or tide. The OTT Maximum Level Gauge is a cost-effective measuring device that indicates the maximum water level by tidal waves or other level fluctuations over a color marking. It is based on the simple principle of color marking. The threshold level is used for preservation of evidence and provides accurate data for later post-processing of flood events.
