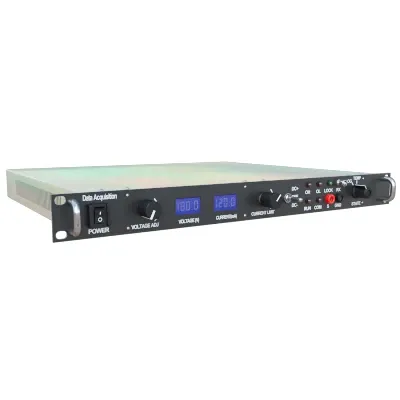

Well-sun - Model 1U -Portable Data Acquisition System

SHARE
The Portable Data Acquisition System (DAS) 1U from Well-sun is a highly integrated unit designed for seamless data acquisition in various field operations. It combines multiple functionalities within a compact 1U 19-inch unit, rendering DC Power capability and serving as an interface between downhole tools and surface systems via a USB connection. Engineered to be versatile, the DAS 1U can deliver power to downhole tools, gather and process data, and facilitate depth and tension measurements. Supporting the WSCbus protocol, it is compatible with AMI, Manchester, and Positive/Negative pulse codes, enhancing its adaptability to diverse operational requirements. The device features robust USB ports for interfacing, and its internal DC unit ensures efficient energy delivery. A visual display optimizes cable connectivity, while the system's compatibility with various cable types ensures flexible deployment. Operating over a wide input voltage range (100-240V), this portable DAS 1U stands out for its integration, adaptability, and functionality in demanding environments.
Most popular related searches
data acquisition system
downhole tool
depth measurement

The Portable Data Acquisition System (DAS) 1U is a highly integrated portable data acquisition unit, which integrates the DC Power function etc. in the 19" 1U unit. The unit is connectable to PC via a USB Port to supply power to the downhole tools, acquire and process the tool data, acquire depth and tension data, and to transmit commands from the surface to downhole tools.

  • Compatible with WSCbus protocol：

WSCbus (AMI code)

Manchester code

Positive/Negative pulses code

  • Better adaptability to different cables
  • USB ports provided for interfacing with other surface systems
  • DC unit integrated
  • Integrated depth data acquisition function
  • Better adaptibility to different cables
  • Visual display function for easy cable connection
  • Power supply: 100-240V
