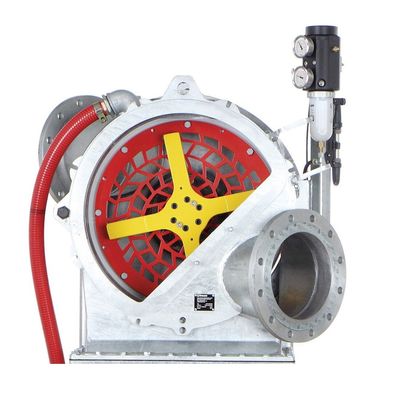

RotaCut - Model RCX -Wet Cutter
The RCX series cutters represent a logical further development of the wet cutter RotaCut. For flow rates of up to 1200 m³/h, they epitomize cost-effective cutting for demanding applications in tight spaces. RCX types feature extremely robust motors as well as a robust and robust design that allows use on the discharge side up to 6 bar. A completely new concept has been developed for good service and maintenance accessibility despite larger dimensions and weight: The swivel service flap provides easy access to the cutter, and thanks to the horizontal arrangement, the cutting blade and grill can be replaced with just a few parts. movements. All RCX types feature a cartridge mechanical seal that requires less time to replace, improving reliability and improving overall maintainability.
- Reliably softens fibers and impurities in liquid media
- Protects subsystem components from damage caused by heavy objects
- Prevents pumps, fittings and piping systems from clogging and clogging
- Reduces viscosity and homogenizes liquids and suspensions
- Prevents floating layers
RotaCuts are used during the discharge or transfer of waste pools to facilitate the transfer of hard materials such as stone, wood, metal, as well as fibrous materials such as oakum, rope and straw, which are carried by the fluid, by breaking them down to the required minimum size.
Thus, the fluid is transferred smoothly without causing blockage in the pumps and lines.
In addition to shredding, RotaCut also allows the separation of large and hard pieces from the fluid that may damage the pump or installation, block the line, and cannot be broken down, with its chamber that acts as a stone catcher . It stores these parts in the stone holder chamber to be cleaned through certain processes.
- Economical foundation cutter RotaCut RC
- Economical cutter RotaCut RCpro for demanding applications
- Easy-to-maintain and user-friendly cutter RotaCut RCQ
- Operator-friendly cutter RotaCut RCQpro for demanding applications
- The most powerful cutter of the series, RotaCut RCX
- Cutting solution for tankers RotaCut MXL
Media flows continuously through RotaCut. Foreign objects (stones, metal fragments, etc.) are separated by size or weight and can then be easily disposed of through a cleaning nozzle. All floating and suspended matter in the medium (fibres, hair, bones, wood, etc.) is transported by the liquid stream to the cutting screen and is reliably crushed by the rotating, self-sharpening blades – even hair and industrial fibers are no problem. Liquids containing solids are converted into pumpable, homogeneous suspensions. This makes the wet cutter RotaCut an effective tool for homogenizing heterogeneous media, which is increasingly needed in the food industry, slaughterhouses and biogas plants. Another important function of RotaCut is effective heavy material separation. Stones or metal pieces etc. What cannot be degraded is kept securely and channeled into a collection container. The wet cutter RotaCut thus effectively protects pumps, piping systems and biogas plant parts from damage caused by foreign bodies.
