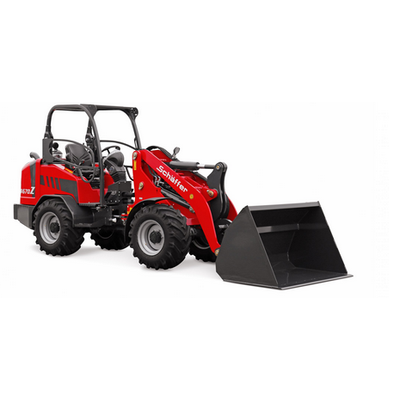

Schäffer - Model 4350 Z -Wheel Loader
The optional potentiometer acts as cruise control. The loader keeps a constant speed automatically and independently from the motor speed – especially convenient when working with fodder dosing devices, straw distributors, mulchers or brooms. Additionally, there are several new safety functions, for example protection from overheating and motor over-revving protection, making working with the loader safer and more reliable. SPT is standard on the 4670 Z-2, the 5680 Z and the 6680 Z-3.
Most popular related searches
wheel loader
sound pressure level
hand arm vibration
exhaust gas treatment
gear pump
temperature indicator
hand arm
emissions standard
gas treatment
dosing system
- 4-cylinder diesel engine Kubota V2403-CR-T, 48.6 kW (66 HP)
- DOC and DPF for compliance with Stage V emissions standards
- Hydrostatic four wheel drive with automotive control
- High-pressure drive HD-plus
- Tyres 11.5/80-15.3 AS, offset +40
- HTF (High Traction Force)
- SPT (Schäffer Power Transmission)
- ECO Mode
- Hydraulic quick gear 20 km/h switchable under load
- HD planetary axles with self-locking differentials, wide design 6 hole
- Combined oil cooler
- Multiple disk brake, maintenance free; service and parking brake
- Maintenance free articulated pendulum joint
- Restraining system for protection roof
- LED working headlights: 2 x front, 1 x rear
- Z-bar boom with parallel lift
- Additional control device electrically switchable on joystick
- Working hydraulics standard / options: 76 / 70 + 70 (double gear pump) 108 l/min MHF
- Adjustable steering column
- Hour meter, rev, counter, fuel control lamp and temperature indicator
- Armrest right hand side
- Rear weight end plate
- Main battery switch (cab version)
- Wide chassis
- Driver-on-board switch
- Headstock type wheel loader with hydraulic tool lock
- Engine
- Type: 4-cylinder diesel engine Kubota V2403-CR-T
- Capacity / option: 48.6 kW (66 HP)
- Exhaust gas treatment / emission level: DOC, DPF / V
- Tyres
- Standard tyres: 11.5/80-15.3 AS, ET+40
- Option I: 15.0/55-17
- Option II: 33x15.5-16.5 SKD, ET+35
- Option III: 425/55-17 AS
- Electric system
- Operating voltage: 12 V
- Sounds and vibration
- Sound pressure level LpA: 85 db(A)
- Sound power level guaranteed LwA: 101 db(A)
- Sound power level equivalent LwA: 100 db(A)
- Hand/arm vibration acc. to ISO 8041: <2,5 m/s²
- Total body vibration acc. to ISO 8041: <0,5 m/s²
- Drive
- Traction hydraulics: Hydrostatic-automotive
- Axles: Original Schäffer axles, 6 wheel nut rim; planetary axle and automatic limited slip brake
- Speed / option: 0 - 20 km/h in 2 gear switchable under load / 0 - 30 km/h
- Brakes and steering
- Service braking system: Combined brake hydrostatic and multi-disc brake
- Parking brake: Multi-disc brake running in oil bath
- Steering: Fully hydraulic articulated-swivel steering
- Tank capacity
- Fuel: 95 l
- Hydraulic oil: 95 l
- Dimensions
- (A) Wheelbase: 2,000 mm
- (B) Chassis length: 4,080 mm
- (C) Overall length with standard bucket: 4,760 mm
- (D) Digging depth: 120 mm
- (E) Max. working height: 4,060 mm
- (G) Loading height with pallet forks: 3,050 mm
- (H) Max. dumping height: 2,500 mm
- (I) Front end height: 1,570 mm
- (J) Dumping width: 640 mm
- (K) Seat height: 1,270 mm
- (L) Protective roof height: 2,270 mm
- (L) Cab height: 2,270 mm
- (M) Max. bucket pivot point: 3,260 mm
- (N) Overall width / option: 1,420 (1,600 turned) / 1,500 - 1,730 mm
- (O) Inner turning radius: 1,425 mm
- (P) Outer turning radius: 2,845 mm
- (Q) Outer radius with standard bucket: 3,175 mm
- Working hydraulics
- Delivery rate: 76 l/min / 70 + 46 (double gear pump) l/min / 115 (MHF) l/min
- Operat. pressure: 210 bar
- Weights
- Operating weight protective roof incl. Original tyres, driver and standard bucket: 3,400 kg
- Operating weight cabin incl. Original tyres, driver and standard bucket: 3,520 kg
- Lifting capacity: 2,400 kg
- Tipping load, straight, pallet fork acc. to ISO 8313: 1,823 - 2,149 kg
- Tipping load, straight, bucket acc. to ISO 8313: 2,120 - 2,428 kg
- Tipping load, articulated, pallet fork acc. to ISO 8313: 1,700 kg
- Tipping load, articulated, bucket acc. to ISO 8313: 1,950 kg
- Payload, pallet fork, even ground acc. to EN 474-3: 1,136 kg
- Payload, pallet fork, uneven ground acc. to EN 474-3: 852 kg
- Payload bucket acc. to EN 14397-1: 880 kg
- Transport of materials
- Specific material weight: 1,6 t/m³
- Bucket volume acc. to ISO 8041: 0,55 m³
- Recommended bucket width: 1,3 m
