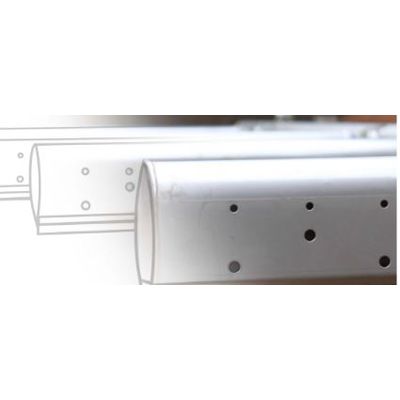

EDI - Model CoarsAir -Maxair -SS -Wide-Band Stainless Steel Coarse Bubble Diffuser
The EDI CoarsAir MaxAir SS diffusers offer efficient mixing for demanding applications such as aerobic digesters or industrial wastewater treatment. The CoarsAir MaxAir SS is manufactured as standard in Stainless Steel 304, available in 316 for select applications, and is a preferred option for long-term resistance against most acids, bases, salts, and other aggressive chemicals or deep tanks with air at elevated temperatures.
Most popular related searches
coarse bubble diffuser
coarse bubble diffuser system
bubble diffuser
bubble diffuser system
industrial wastewater treatment
diffuser system
aerobic digestion
wastewater treatment
industrial wastewater
digestate

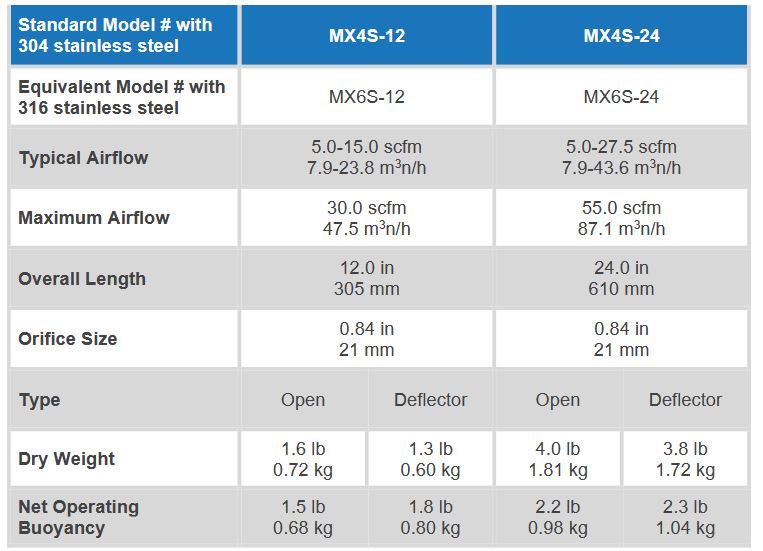

- 304-L Stainless Steel body is standard, optional 316-L SS body available, with 316-L stainless steel ends for both options.
- Inverted air chamber design ensures uniform air release across a wide range, resulting in great airflow capacity.
- The multi-level air metering orifice design ensures full utilization across the unit’s operating range.
- Available in 24” (610 mm) and 12” (305 mm)
- Standard ¾-inch diameter NPT (male) threaded with integral hex for ease on installation onto EDI’s ruggest Stainless Steel Saddle connections or similar threaded adapters.
- Clog resistant self-purge design.
- Standard open bottom with optional closed bottom deflector available.
- Highest temperature resistance for autothermal digester applications.
- Orifice plug custom-engineered for specific pressure requirements, Made from glass- filled polypropylene for high temperature resistance.
