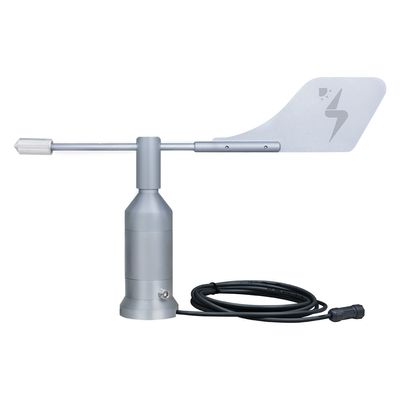

SEVEN - Model 3S-WD-A/P -Wind Direction Sensor
The Wind Direction Sensor is a professional meteorological device designed to measure horizontal wind direction. It uses a Hall Effect Position Sensor to detect changes in wind direction and converts them into a signal. The measured data is transmitted as an analog output signal (0-3.3V). This model can connect to SEVEN’s Irradiance Sensor, Sensor Box, and Compact Weather Station models via a pin connector.Most popular related searches
wind direction sensor
compact weather station
wind sensor
irradiance sensor
position sensor
weather station
measurement wind direction
measure wind direction
weather modeling
horizontal wind monitoring
- Item Code: 3S-WD
- Sensor Type: Vane-Driven Hall Effect Position Sensor
- Measuring Range: 0 to 359°
- Accuracy: ±1% of Measuring Value
- Resolution: 1°
- Threshold: 1 m/s
- Data Output: Analog (0 V – 3.3 V)
- Electrical Connection: 3 m LIYY Cable, UV and Weather Resistant
- Operating Temperature Range: -40°C to +85°C (Ice Free)
- Dimensions: Ø290×195 mm
- Weight: 0,25 kg
- IP Rating: IP 54 (Optional IP 67)
- Housing Material: Aluminum
- Vane Material: Aluminum
- Mounting Method: Pipe or Ground Mounting
- Standard: Compliant to IEC 61724-1:2021
