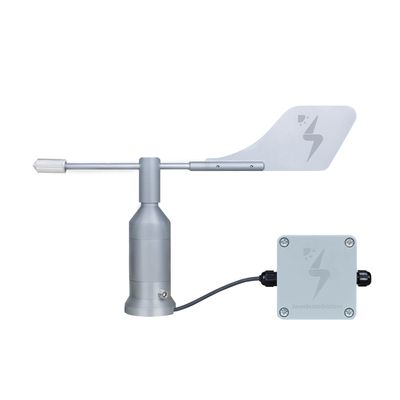

SEVEN - Model 3S-WD-I -Wind Direction Sensor With Analog Output
The Wind Direction Sensor is is a professional meteorological sensor used to measure horizontal wind direction. It consists of two parts, the body, and the vane. It measures the Wind Direction in degree (°). The Wind Direction Sensor can be used for many reasons, such as the interpretation of the values of modules temperature, as a strong wind blowing from the North, for example, can cool the panel. It is also used is to document warranty claims related to the damage caused by the wind. The Wind Direction Sensor with Analog Output is compatible with all Dataloggers, Gateways, and PLCs having Analog input port. It is supplied with mounting facility and cable.Most popular related searches
wind direction sensor
wind sensor
measurement wind direction
measure wind direction
meteorology sensor
wind monitoring
horizontal wind monitoring
data logger
meteorology monitoring
- Item Code: 3S-WD-I
- Sensor Type: Vane-Driven Hall Effect Position Sensor
- Measuring Range: 0 to 359°
- Accuracy: ±1% of Measuring Value
- Resolution: 1°
- Threshold: 1 m/s
- Data Output: Analog 4-20 mA
- Power Supply: 12 to 30 V DC
- Power Consumption: 30 mA @ 24 V DC
- Electrical Connection: 3m LIYYC11Y PUR Cable, UV and Weather Resistant
- Operating Temperature Range: -40°C to +85°C (Ice Free)
- Dimensions: Ø290×195 mm
- Box Dimensions: 80 x 82 x 55 mm (W x L x H)
- Weight: 0,25 kg
- Box Weight: 0,25 kg
- IP Rating: IP 54 (Optional IP 67)
- Housing Material: Aluminum
- Vane Material: Aluminum
- Box Material: ABS
- Mounting Method: Pipe or Ground Mounting
- Standard: Compliant to IEC 61724-1:2021
