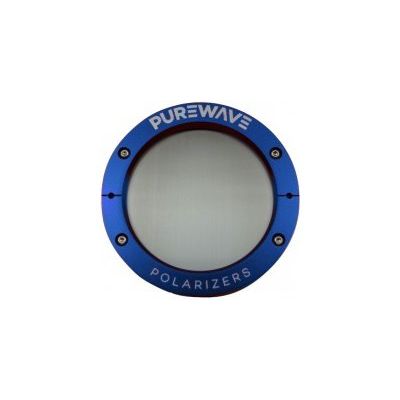

Micron - Model 10 -Wire Grid Polarizer

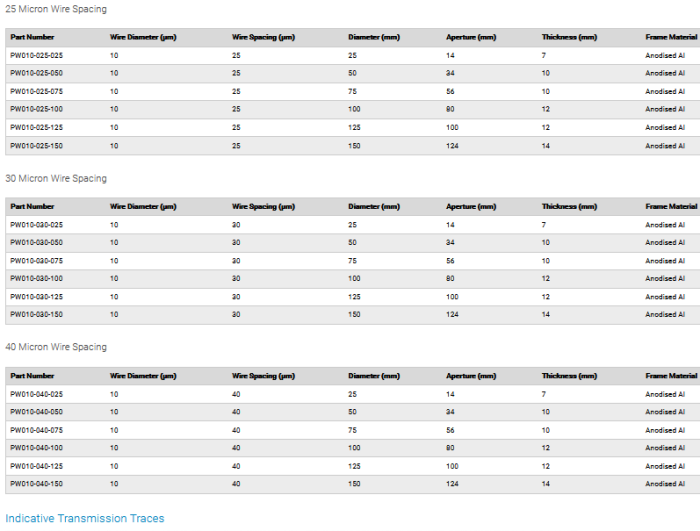

Fabricated from 10 micron diameter tungsten wire, and with a choice of wire spacing starting from 25 microns, these wire grid polarizers are suitable for use from approximately 100 microns (or 3 THz) to longer wavelengths. Please refer to the table below for the standard availability of wire spacing and frame clear aperture / outer diameter.
