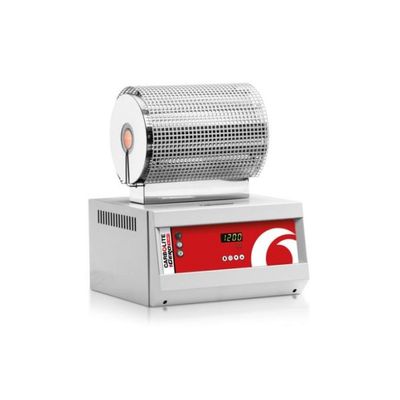

Carbolite - Model MTF -Wire Wound Single Zone Tube Furnaces
The MTF wire wound tube furnaces, like the larger diameter CTF range use a wire element that is wound directly onto a fixed integral ceramic work tube. This simple and economical design provides a furnace which can be used without the need to purchase an accessory work tube. However, should vacuum or a modified atmosphere be required, it is necessary to use a separate slide-in work tube in order to provide the required length needed to fit end seals. Similarly, in some circumstances a work tube that has different physical or chemical properties to the fixed work tube may be required. The use of an additional slide-in work tube protects the integral work tube and heating element.
- 1000°C or 1200°C maximum operating temperature
- 15 mm, 25 mm or 38 mm inner diameters
- 130 mm, 250 mm, 400 mm or 850 mm heated length
- Integral wirewound work tube
- Carbolite Gero 301 controller, with single ramp to set-point & process timer
- Delayed start / process timer function as standard
- Horizontal configuration mounted on control module
- Over-temperature protection (recommended to protect valuable contents & for unattended operation)
- A range of additional work tubes, end seals and work tube packages is available for use with modified atmosphere
- Insulation plugs & radiation shields to prevent heat loss & improve uniformity
- Alternative mounting options are available
- A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications
MTF 10/15/130
Max temp (°C): 1000
Max continuous operating temp (°C): 900
Dimensions: Fixed tube inner diameter (mm): 15
Dimensions: Heated tube length (mm): 130
MTF 10/25/130
Max temp (°C): 1000
Max continuous operating temp (°C): 900
Dimensions: Fixed tube inner diameter (mm): 25
Dimensions: Heated tube length (mm): 130
MTF 12/25/250
Max temp (°C): 1200
Max continuous operating temp (°C): 1100
Dimensions: Fixed tube inner diameter (mm): 25
Dimensions: Heated tube length (mm): 250
MTF 12/38/250
Max temp (°C): 1200
Max continuous operating temp (°C): 1100
Dimensions: Fixed tube inner diameter (mm): 38
Dimensions: Heated tube length (mm): 250
MTF 12/25/400
Max temp (°C): 1200
Max continuous operating temp (°C): 1100
Dimensions: Fixed tube inner diameter (mm): 25
Dimensions: Heated tube length (mm): 400
MTF 12/38/400
Max temp (°C): 1200
Max continuous operating temp (°C): 1100
Dimensions: Fixed tube inner diameter (mm): 38
Dimensions: Heated tube length (mm): 400
MTF 12/38/850
Max temp (°C): 1200
Max continuous operating temp (°C): 1100
Dimensions: Fixed tube inner diameter (mm): 38
Dimensions: Heated tube length (mm): 850
- Heat-up time (mins): --
- Dimensions: External H x W x D (mm): 430 x 900 x 375
- Dimensions: Furnace body length (mm): 900
- Uniform length ±5°C (mm): 500
- Max power (W): 2800
- Holding power (W)
- Thermocouple type: N
- Weight (kg): 24
Please note
- Heat up rate when using an optional ceramic work tube must be limited to 5 °C/min
- Heat up rate is measured to 100°C below max, using an empty tube & insulation plugs
- Holding power is measured at continuous operating temperature
- Uniform length ±5°C (mm): Uniform temperature lengths are measured with insulation plugs fitted
- Maximum power and heat up times based on a 240V supply
