VEGAPULS - Model C 11 -Wired Radar Sensor for Continuous Level Measurement
For simple measuring tasks, IP66/IP68, Type 6P. Application area: Axial cable outlet, 4 ... 20 mA output, measuring range up to 8 m, accuracy ±5 mm, PVC cable with 10 m length. VEGAPULS C 11 is the ideal sensor for non-contact level measurement in simple applications where a high degree of protection is required. It is particularly suitable for use in water treatment, pumping stations, rain overflow basins and level monitoring. In bulk solids the sensors are used in small bulk solids silos or open containers.
Most popular related searches
level monitoring
radar sensor
non-contact level monitoring
pump station level controller
pump station
point level monitoring
water treatment pump
water treatment pumping
pump station level
continuous level monitoring
- Exact measurement results independent of medium, process and environmental conditions
- Low-cost radar sensor for simple measurement tasks
- Maintenance-free operation due to non-contact 80 GHz radar technology
Pumping station

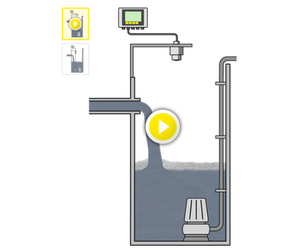

Level control in a pumping station
To the application
Container

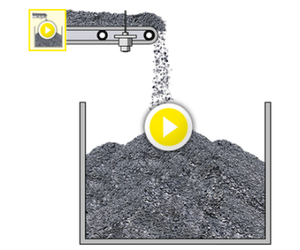

Level monitoring in a screened waste container
To the application
Steam pressure peelerLevel, pressure and point level measurement in the steam pressure peeler
Tomato pulperLevel measurement and point level detection in the tomato pulper
- Measuring range- Distance: 8 m [Meter - Foot]
- Process temperat ure: -40 ... 60 °C [°C - °F]
- Process pressure: -1 ... 3 bar [Bar - kPa - psi]
- Accuracy : ± 5 mm / ± 0.2"
- Frequency : 80 GHz
- Beam angle : 8°
- Materials, wetted parts: PVDF
- Threaded connection : G1W/G1. 1WNPT/1 NPT, R1tt/R1
- Seal material : FKM
- Protection rating: IP66/IP68 (3 bar). Type 6P
- Output: 4... 20 mA
- Ambient tempera ture: -40... 60 °C
Adjustment
- PC, PACTware and DTM
- Smartphone / Tablet / PC via Bluetooth
