Gometrics VANGUARD - Model WirelessHART -Wireless Gas Detector for Toxic and Combustible
FromGometrics

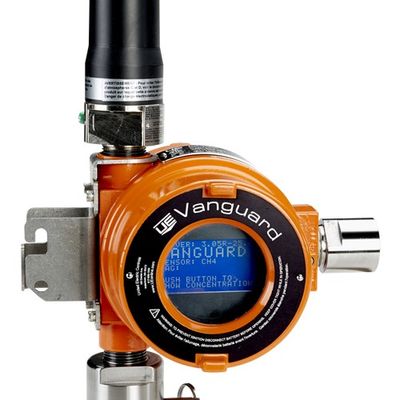

The Vanguard WirelessHART gas detector from UNITED ELECTRIC is ideal for monitoring toxic and combustible gases without costly, fixed wiring. With a five-year battery life and a calibration button, the Vanguard detector is easy to operate and maintain. Each detector has a WirelessHART transceiver, antenna, display, long-lasting power module, gas sensor and signal processor for the gas sensor. Vanguard uses a sensor architecture with the “Flexsense”trademark, which allows the sensor to identify its target gas and self-configure itself to a Vanguard transmitter when connected. It is currently available with either a non-dispersive (0-100% LEL) infrared methane sensor (NDIR) or an electrochemical hydrogen sulfide sensor (0-100 ppm).
Most popular related searches
gas detection system
asset management system
remote gas detection
H2S monitoring
remote gas detection system
LEL gas monitoring
gas sensor
H2S
mercaptan sensor
CH4 sensor
ADVANTAGE
- Wireless capability
- Interchangeable sensors for toxic and combustible gases
- Interoperable with existing wirelessHART networks and asset management systems (AMS)
- Easy calibration and operation
- 5 + years battery life
- Heavy duty design with hazardous area approvals Class 1, Div 1 and 2
APPLICATIONS
- Remote and local wireless gas detection
- Temporary situations in which the cost of establishing a wired solution is completely unfeasible
- Asset management initiatives
CHARACTERISTICS
- Operating temperature: -20 ° C to 50 ° C
- Supported gases: Methane (CH4); Hydrogen sulfide (H2S)
- Resolution: 1% LEL o 1ppm
- Accuracy: ± 2% LEL (sensor CH4); ± 10 PPM (sensor H2S)
- Repeatability: ± 2% LEL (sensor CH4); ± 10 PPM (sensor H2S)
- Enclosure: Type 4X
- Weight: 9.6 lbs (including sensor and battery)
