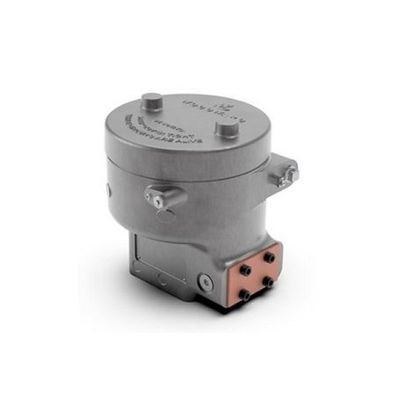

Woodward - Model CPC-II -Second Generation Current-to-pressure Converters
FromWoodward, Inc.
Woodward`s second generation current-to-pressure converters (CPC-II) 25 bar, Zone 1, simplex version with enhanced dynamics are electrohydraulic pressure regulating control valves used to position single-acting steam turbine valve servos/actuators. The CPC-II solves one of the industries number one reliability issue of oil contamination affecting equipment uptime and performance.
Most popular related searches
control valve
oil contamination
steam control valve
pressure control valve
hazardous area
pressure regulator
pressure transducer
valve actuator
servo valve
actuated valve
The CPC-II accepts 4-20 mA pressure demand signals and accurately controls oil pressure to precisely position single-acting steam turbine governor-valves. Precise and stable steam valve control directly relates to improved steam turbine speed and load control and reduced system mechanical wear.
- Oil contamination resistant (ISO20/16)
- Precise fluid pressure control
- Stable & linear valve control
- Included valve linearization table (Full range <0.2%)
- Redundant inputs/sensors for critical applications
- Accepts signals from redundant controllers
- Redundant (dual) CPCs (Master/Slave) functionality
- Standard mounting and hydraulic connections
- Self-cleaning valve algorithm
- Status & health indication (Pressure transducer health, input demand signal health, internal unit health, Input power source quality)
- Control pressure readout
- Software service tool with trending
- Certified for North American Hazardous Locations
- Compliant with applicable CE Directives—ATEX, Machinery, PED, and EMC
- Woodward CPC`s: 9907-046, 9907-477, 9907-802, 9907-803, 9907-1100
- Voith E360 models
