- 70-300mm² 3 core CNE cable.
- 70-300mm² 4 core SNE cable (using conversion kit).

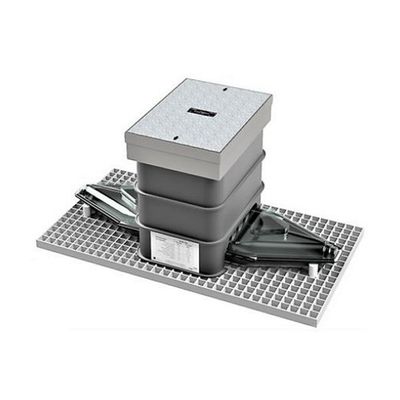

- A ‘pre-cast’ 2 Way Link Box complete with height adjustable concrete infill cover rated to BS EN124 B125 (12½ ton) and pavement access chamber.
- A factory assembled and ‘pre-cast’ turret which accommodates solid links (3 supplied) or fused links to BS88 (83mm crs).
- A cast iron bell cover (insulated) for reliable protection against water ingress.
- A neutral test facility and also generation/fault location connection point within the bell cover.
- All phase and neutral/earth mechanical connectors are factory fitted and utilise shear-head bolt technology for consistent and reliable performance.
- Phase Identification Tags (L1, L2 & L3) are factory fitted in each pocket and remain highly visible with links/fuses in place
- Type tested to:- ENA Technical Specification 09-23 Iss 2 2017 - Link Boxes.
