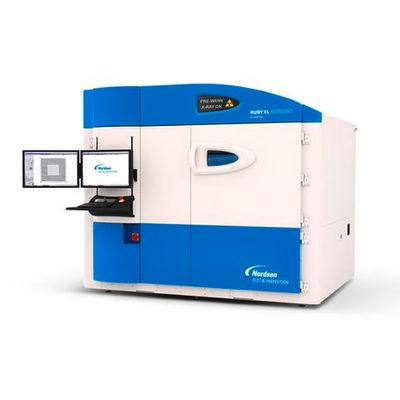

Nordson - Model MXI Ruby XL -X-ray Inspection System

• Dimensions ( mm)
• Approx. Size :
• 94.5" x 98.5" x 81.5" (w x d x h)
• 2400 x 2500 x 2070 mm (w x d x h)
• Weight
• Total system weight : 3000 kg (6600 lbs)
• Max. Power Consumption : 10 kg (22 lbs)
• Power Supply
• Single Phase : ~ 200 - 230Vac, 16A
• Max. Power Consumption : 1000 W
• Climatic conditions
• Operating temperature : 10 °C to 30 °C
• Air humidity : < 85 %
• Compressed Air
• Compressed Air : 4-6 bar of clean dry air for anti-vibration

Maximum board size: 47” x 26.4” (1205 x 672 mm) with reduced magnification

• Maximum inspection area: 33” x 24.2” (840 x 615mm)
• 70° oblique angle views (over 30” x 24”, 762 x 610 mm):
• for 360° around a point of interest
• isocentric manipulator configuration keeps features in field of view

Nordson TEST & INSPECTION NT500 Maintenance-Free, Sealed-Transmissive X-ray Tube

• 0.5 μm Feature Recognition
• 160 kV Tube with Up to 10 W Target Power • Always Retains
• Sub-Micron Ability
• Nordson T&I 3 Mpixel @ 25fps Long Lifetime CMOS Flat Panel
• Detector with Real Time Image Enhancements
• Geometric Magnification 1,800 X, System 7,800 X for Total 23,400 X with Digital Zoom

The vertical system configuration, with the x-ray tube sitting below the isocentric ‘move and tilt’ of the detector, all controlled through simple, joystick-free, ‘point and click’ operation, provides the safe, collision-free and high magnification inspection required for production applications. All these tasks can be simply and quickly automated from within the Nordson T&I ImageWizard software without the need for programming skills. Optional upgrades include X-Plane™ and joystick control.

Crystal Clear X-ray Inspection!
