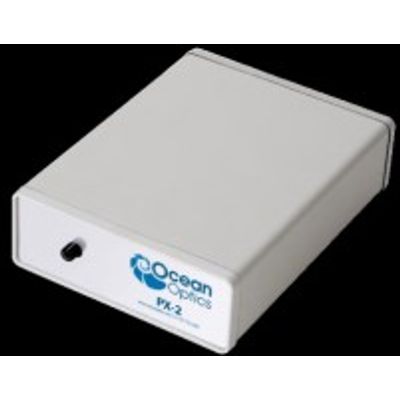

Pulsed Xenon - Model PX2 -Xenon Light Source
FromSysmatec
High flash rate, short-arc xenon lamp for the UV (220-750 nm). The PX-2 operates at speeds up to 220 Hz, offers excellent pulse-topulse stability and has two trigger modes for software control of the flash rate.
Most popular related searches
The flash rate is modified by changing the integration period. Because it produces a pulsed signal, the PX-2 is less likely to contribute to solarization in optical fiber assemblies, which can occur when fibers are illuminated with signal
- Spectral range: 220-750 nm
- Approximate dimensions: 140 mm x 105 mm x 40 mm (LWH)
- Power input: 1.3 A at 11V and 220 Hz, 100 mA at 12V and 10Hz
- Trigger input: external TTL positive pulse via 15-pin connector
- Output: 45 microjoules per pulse maximum, 9.9 watts average power from bulb, 220 Hz pulse rate maximum
- Pulse duration: 5 microseconds (at 1/3 height of pulse)
- Lifetime: 230 days continuous operation at 50 Hz pulse rate
- Aperture: 3 mm
- Connector: SMA 905
- Timing signals available: Multiple mode: up to 220 Hz (varies with A/D samplingfrequency); Single mode: varies with scan rate
