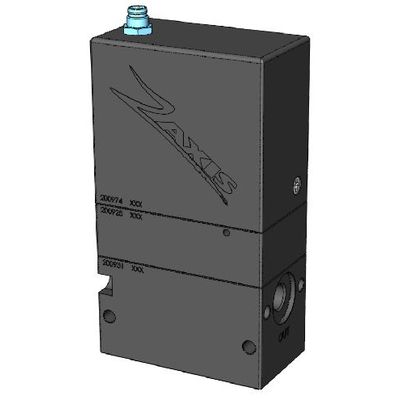

Zaxis - Model Z-Regulator -Electro Pneumatic Pressure Regulator
Extremely fast and accurate, the Z-Regulator proportional electro pneumatic pressure regulator converts a voltage or current input into a precise proportional pressure output. The Zregulator uses two values working in unison to reach and maintain pressure. A built in 30 cc reservoir means there is no minimum volume to operate the Zregulator and provides for a more consistent pressure over time. The operating pressure of Zaxis’ electronic regulator is 0-500 psi. It can be can configured with a 2″ display. The Zregulator can be manually controlled with buttons or digitally controlled with 0-5V, 0-10V or 4 to 20 mA signal. In the future this product will be Ethernet IP capable.
The Zregulator is a can be used as a stand–alone product or incorporated into larger machines. As a stand–alone product, it is ideal when quickly changing between different pressure sets. Also its module shape and size means the Zregulator easily fits into larger machines.
- Dimensions: 126 x 64 x 68 mm (5.00 x 2.50 x 2.75 in)?
- Power Requirement: 24 ± 4 VDC @ 5W?
- Command Input: Configurable 0…10 VDC; 4…20mA?
- Monitor Output: 0…5 VDC?
- Body: Aluminum 6061
- Minimum Volume: No Minimum Volume
- Flow: 20 SLPM @ 500 psi
