Zemmler - Model Multi Screen Ms1600 -Mobile Screening Machines

FromZemmler Siebanlagen GmbH

SHARE

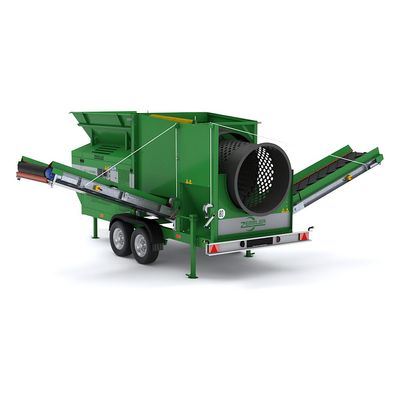

The ZEMMLER^® MULTI SCREEN^®is primarily designed for gardening and landscaping companies. Due to its compact dimensions and low weight, this double trommel screening machine can be towed by vans and small trucks. With the help of an optional slip-on ring, the machine can be converted into a three-fraction screening machine within a few minutes and can thus also screen (like the large ones) three fractions in one operation. The electrical operating mode ensures low energy consumption.

Most popular related searches

mobile screening system

screening system

trommel screener

construction waste

materials recycling

Capacity: (depending on material) 5 – 30 m³/h

Drive: electric (connected load 16A) optional with petrol or diesel aggregate

Double trommel: Screening surface: 5,2 m² inner trommel, 6,5 m² outer trommel, Outer diameter: 1.300 mm, Trommel length: 1.740 mm/2.640 mm

Wire screens: interchangeable, meshes from 2 to 80 mm, Inner screen mesh: 75×170 mm (Standard)

Fractions: 2 fractions, optional 3rd fraction via slip-on ring

Feeding hopper: Volume: 1,85 m³, Loading height: 2.300 mm, Loading length: 2.450 mm

Chassis: 2-axle central trailer for 80 km/h acc. to StVZO

Weight: (depending on configuration) max. 3.500 kg

Transport dimensions (L x W x H): 6.450 x 2.100 x 3.200 mm

Soil

Sand

Gravel

Stones

Compost

Green cuttings

Recycling material

Woodchips

Construction waste

Substitute fuels

Slag

Coal

Glass

and much more

Chassis
Skid, hook lift, 5t rubber spring axle

Additional equipment

Slip-on ring for 3rd fraction
Special paintwork
Petrol/diesel aggregate
Hopper attachment
Remote control
Shear blade
Connectivity options
Rib belt
Chute

and much more
