Zhongyuan - Auto-Mortar Spraying Machine

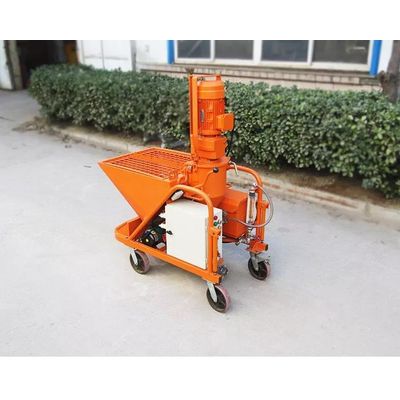

This is a common type of dry mortar spraying machine (Ready-mixed mortar machine). It is widely used in Europe and other developed countries, is a kind of reliable work, excellent performance in mature machine. Mainly used in transportation of spraying with pumpability of dry mortar or materials, such as cement mortar, lime mortar and plaster mortar insulation mortar, mortar, fireproof and refractory coating. Because HS3 by mixing, pumping and spraying integrated design, and has the advantages of small volume, light weight, and with the work efficient, quiet, making HS3 dry powder mortar spraying machine as the preferred equipment for dry mortar spraying.
- Model: HS3Total power machine: 8.5kw
- Main mortar: 3P,380V,5.5kwTotal power machine:8.5kwHopper Volume:120L
- sets of mixer, self water suction pump, micro air compressor and screw pump in one;
- Small size, light weight, convenient for indoor and outdoor movement, construction;
- screw pump continuously pump materials to ensure that the material is even and continuous.
- machine has high efficiency and low noise.
- the air valve of the spray gun is operated by the remote control machine, which is convenient to operate and save manpower.
- module is designed with simple operation and convenient maintenance
Rated displacement: 30L/Min
Rated working pressure: 3Mpa
Total power machine: 8.5kw
Main mortar: 3P,380V,5.5kw
Hopper Volume: 120L:
Air compressor displacement: 250L/min
Pump discharge: 700L/hour
Conveying Hose: 25-32mm
Horizontal conveying distance: 50 m
Endotracheal diameter: 13mm
Vertical conveying distance: 10 m
Screw speed: 380 RPM
Warranty prriod: 12Months
Weight: 280 kg
Dimension: 1240mm*680mm*1550mm
